11010 Marine

Roulement billes

11010 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links — they help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-55 55hpVolvo Penta D2-75 75hpVolvo Penta MD2010 10hpVolvo Penta MD2020 10hpVolvo Penta MD2030 15hpVolvo Penta MD2040 21hpVolvo Penta TAMD41 / TMD41 / AD41 / D41 200hp

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

08101-0620308153-062033331101430288424101-062034

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidence
0.3431.483 Johnson Johnson 0.3431.483 / 05-08-129 = 6203 = VP 11010 on F5B-9 858150 and F7B-9 3583115. Later Johnson 0.3431.742 is 6203-2RSH replacing 0.3431.483. · depth:bearings depcopump.com confirmed
6203 SKF volvo-penta Johnson F5B-9 10-24268-4 = VP 858150/858408; pos 15 0.3431.483 BALL BEARING 6203 qty2; retain ring bore D40. Sibling F7B-9 10-24524-12 (VP 3583115 31/41) same 0.3431.483/6203. PPS 3583115 exploded lists Ball bearing 11010. Not 6001 (F4 181717). Drawing prints 6203 not 2RS (Johnson 0.3431.742 6203-2RSH is a later service sub). Do not lump 861812. · depth:bearings buyfilteronline.com; depcopump.com; kubotageneratorsdirect.com; shop.toadmarinesupply.com confirmed

Standard component cross-ref

An industry-standard component — buy from any bearing / seal / o-ring house; just specify the designation.

Equivalent P/NBrandDescriptionSourceConfidence
6203 Bearing Any-house deep-groove 6203 (17x40x12) = VP 11010; Johnson F5B-9/F7B-9 qty2 on 858150/858408/3583115. Same hardware PN also on D1/D2 cylinder-block figures. · depth:bearings depcopump.com; kubotageneratorsdirect.com; shop.toadmarinesupply.com; soleiberia.com confirmed

Used in 47 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 2768. Sea Water Pump, Components: 861168 12 2
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 3399. Sea Water Pump, Components: 860629 12 2
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 6012. Sea Water Pump, Components 11 2
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 6013. Sea Water Pump, Components: 3581559 11 2
VP-TAMD41 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746620.html Fig 556. Sea Water Pump, Components: 860629 13 2
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8288. Cylinder Block and Flywheel Housing 17 1
VP-D1-20 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8289. Cylinder Block and Flywheel Housing 21 1
VP-D1-20 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8289. Cylinder Block and Flywheel Housing 21 1
VP-D1-30 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8290. Cylinder Block and Flywheel Housing 19 1
VP-D2-40 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8291. Cylinder Block and Flywheel Housing 21 1
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 35035. Cylinder Block and Flywheel Housing 17 1
VP-D1-20 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 35046. Cylinder Block and Flywheel Housing 19 1
VP-D2-40 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 35091. Cylinder Block and Flywheel Housing 21 1
VP-D1-30 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 35092. Cylinder Block and Flywheel Housing 19 1

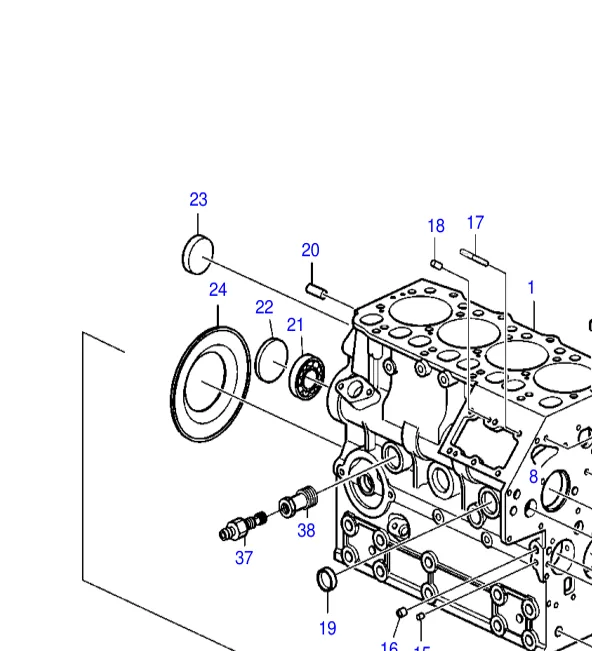

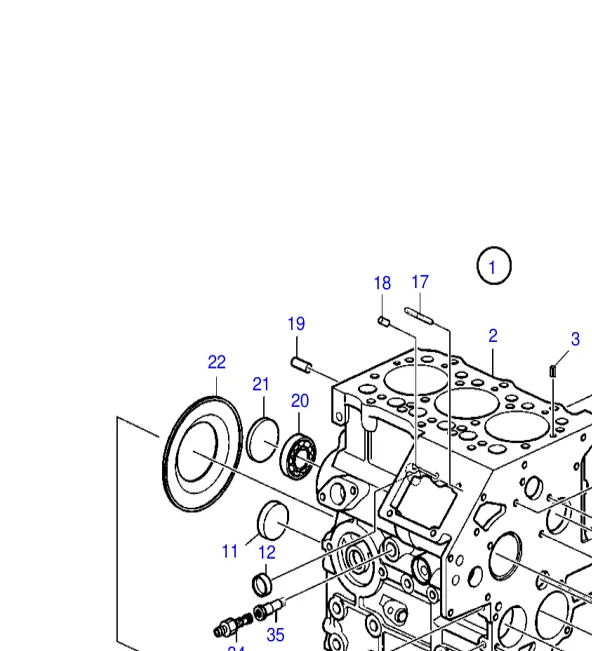

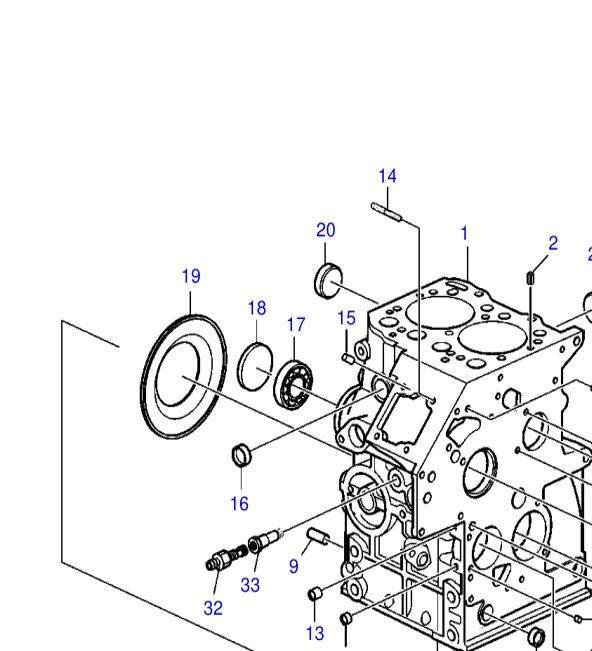

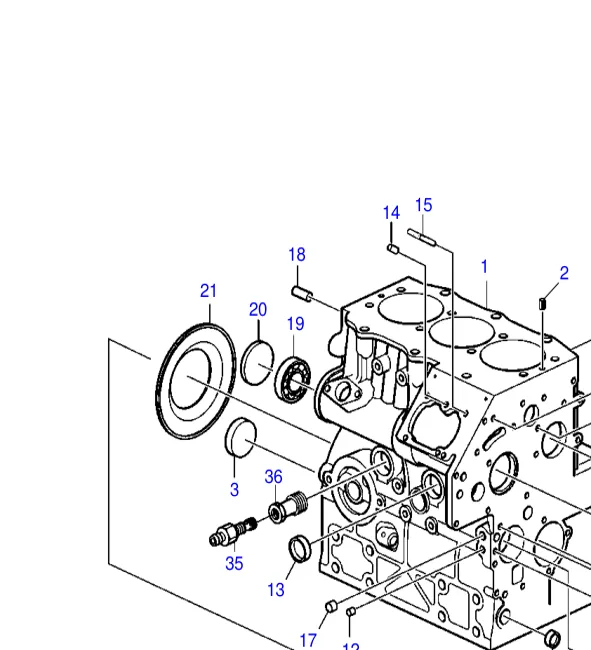

VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-35035. Cylinder Block and Flywheel Housing (D1-13F) 12 17 1
VP-D1-20 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-35046. Cylinder Block and Flywheel Housing (D1-20F) 16 19 1
VP-D1-30 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-35092. Cylinder Block and Flywheel Housing (D1-30F) 20 19 1
VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-35091. Cylinder Block and Flywheel Housing (D2-40F) 24 21 1
VP-D2-55 D2-55 Parts Catalog (EN) Fig 21-35209. Cylinder Block and Flywheel Housing (D2-55F) 8 16 1
VP-D2-55 D2-55 Parts Catalog Fig 21-35209. Cylinder Block and Flywheel Housing 10 15 1
VP-D2-55 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744440.html Fig 5301. Cylinder Block and Flywheel Housing 16 1
VP-D2-55 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744440.html Fig 35209. Cylinder Block and Flywheel Housing 15 1
VP-D2-75 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744450.html Fig 6740. Cylinder Block and Flywheel Housing 5 1
VP-D2-75 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744450.html Fig 35177. Cylinder Block and Flywheel Housing 5 1
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 139. Cylinder Block and Flywheel Housing 11 1
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 140. Cylinder Block and Flywheel Housing 11 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 141. Cylinder Block and Flywheel Housing 11 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 141. Cylinder Block and Flywheel Housing 11 1
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 142. Cylinder Block and Flywheel Housing 10 1
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2438. Cylinder Block and Flywheel Housing 11 1
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2438. Cylinder Block and Flywheel Housing 11 1
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2439. Cylinder Block and Flywheel Housing 11 1
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2439. Cylinder Block and Flywheel Housing 11 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2440. Cylinder Block and Flywheel Housing 11 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2440. Cylinder Block and Flywheel Housing 11 1
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2441. Cylinder Block and Flywheel Housing 10 1
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2441. Cylinder Block and Flywheel Housing 10 1
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7740690.html Fig 4001. Cylinder Block and Flywheel Housing 11 1
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7740690.html Fig 4006. Cylinder Block and Flywheel Housing 11 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7740690.html Fig 4007. Cylinder Block and Flywheel Housing 11 1
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7740690.html Fig 4009. Cylinder Block and Flywheel Housing 10 1
MD31A, TMD31A, TMD31B, TAMD31A, TAMD31B, AD31A, AQAD31A, AD31B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19138. Sea Water Pump 13 2
MD31A, TMD31A, TMD31B, TAMD31A, TAMD31B, AD31A, AQAD31A, AD31B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19139. Sea Water Pump 13 2
TMD41A, TMD41B, D41A, D41B, TAMD41A, TAMD41B, AQAD41A, AD41A, AD41B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745630.html Fig 19452. Sea Water Pump: 858469 13 2
TMD41A, TMD41B, D41A, D41B, TAMD41A, TAMD41B, AQAD41A, AD41A, AD41B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745630.html Fig 19453. Sea Water Pump 13 2
VP-TAMD41 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745630.html Fig 36999. Sea Water Pump, Components 11 2
TMD41B, D41B, TAMD41B, AD41B https://powerproductsystems.com/engines-live/marine-diesel-engines/7745920.html Fig 20520. Sea Water Pump: 860629 13 2
