1140665 Marine

Flexible d'échappeme

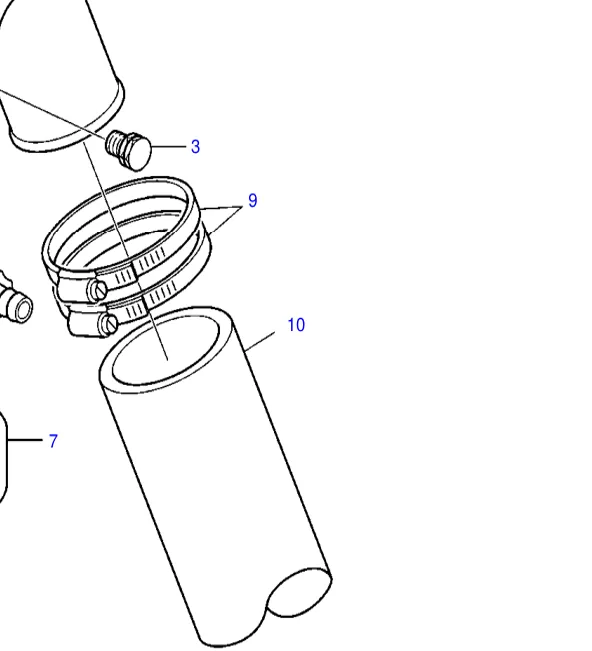

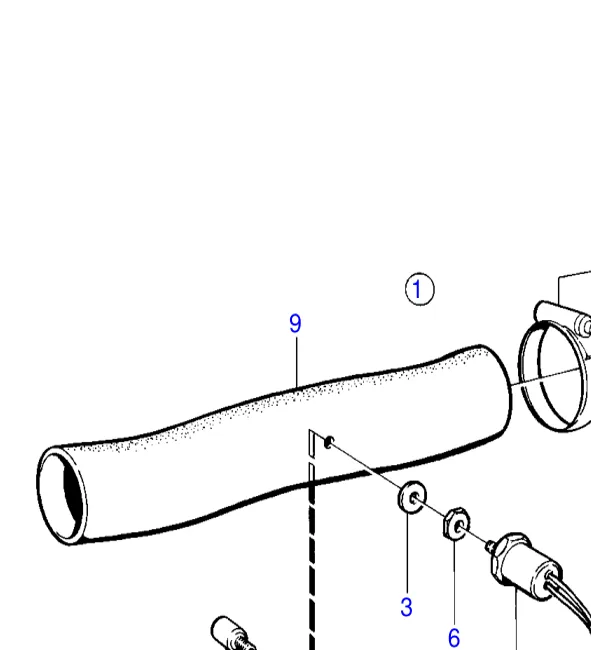

1140665 — Flexible d'échappeme exploded diagram
Ref 9
Fig 30-21492

1140665 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-55 55hpVolvo Penta D2-75 75hpVolvo Penta MD2010 10hpVolvo Penta MD2020 10hpVolvo Penta MD2030 15hpVolvo Penta MD2040 21hpVolvo Penta MD5A/B/C 7.5hpVolvo Penta MD6A/B 10hpVolvo Penta MD7A/B 13.4hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
SLANG45 Vetus 45mm ID wet-exhaust class match (Vetus SLANG45). Not OEM-stated; verify clamp/OD and cut length before merge. - depth:hoses yacht-supply24.com likely
AMZeBayAli
412545 Seaflow ASAP Seaflow Superflex 45mm ID wet exhaust (Lloyd's/RINA; SAE J2006 marking). Sold per metre - cut to install length. OEM desc truncated Flexible d'echappement. Sibling VP 1140664/1140666/1140667 not crossed (no ASAP claim). - depth:hoses asap-supplies.com confirmed
AMZeBayAli

Used in 25 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11806. Water Cooled Exhaust Muffler with Installation Components: 828064 8 1
D1-13 A, D1-13 B, D1-20 A, D1-20 B, D1-30 A, D1-30 B, D2-40 A, D2-40 B, D1-13F, D1-20F, D1-30F, D2-40F https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8329. Exhaust Pipe 8 1
D1-13 A, D1-13 B, D1-20 A, D1-20 B, D1-30 A, D1-30 B, D2-40 A, D2-40 B, D1-13F, D1-20F, D1-30F, D2-40F https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9785. Exhaust Riser 10 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 21492. Exhaust Thermo Switch Control 9 1
Fig 25-8329 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 25-8329. Exhaust Pipe (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 136 8 X
Fig 25-9785 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 25-9785. Exhaust Riser (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 134 10 X
Fig 30-21492 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 30-21492. Exhaust Thermo Switch Control (D1-13A, D1-20A, D1-30A, D2-40A) 280 9 X
VP-D2-55 D2-55 Parts Catalog (EN) Fig 30-5522. Exhaust Thermo Switch Control (D2-55A, D2-55B, D2-55C) 204 9 X
VP-D2-55 D2-55 Parts Catalog Fig 30-5522. Exhaust Thermo Switch Control 213 9 X
VP-D2-75 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744450.html Fig 5522. Exhaust Thermo Switch Control 9 1
MD11, MD11C, MD11D, MD17, MD17C, MD17D https://powerproductsystems.com/engines-live/marine-diesel-engines/7742230.html Fig 15179. Outer Exhaust Line and Exhaust Bend 3 1
MD11, MD11C, MD11D, MD17, MD17C, MD17D https://powerproductsystems.com/engines-live/marine-diesel-engines/7742230.html Fig 15199. Outer Exhaust Line 9 1
MD11, MD11C, MD11D, MD17, MD17C, MD17D https://powerproductsystems.com/engines-live/marine-diesel-engines/7742230.html Fig 15205. Water Cooled Exhaust Muffler with Installation Components, Later Prod 8 1
MD1B, MD2B, AQD2B, MD3B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742090.html Fig 13828. Outer Exhaust Line and Exhaust Bend 3 1
MD1B, MD2B, AQD2B, MD3B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742090.html Fig 13853. Outer Exhaust Line 9 1
MD1B, MD2B, AQD2B, MD3B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742090.html Fig 13856. Water Cooled Exhaust Muffler with Installation Components, Earl. Pr.: A 51 1
MD1B, MD2B, AQD2B, MD3B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742090.html Fig 13857. Water Cooled Exhaust Muffler with Installation Components, Later Prod 8 1
VP-MD2010, VP-MD2020, VP-MD2030, VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 209. Water Cooled Silencer and Exhaust Line: 828064 8 1
VP-MD5 https://powerproductsystems.com/engines-live/marine-diesel-engines/7742220.html Fig 14999. Cooling System, Induction- and Exhaust Manifold: A 53 1
MD5A, MD5B, MD5C https://powerproductsystems.com/engines-live/marine-diesel-engines/7742220.html Fig 15072. Water Cooled Exhaust Muffler with Installation Components, Earl. Pr.: A 51 1
MD5A, MD5B, MD5C https://powerproductsystems.com/engines-live/marine-diesel-engines/7742220.html Fig 15073. Water Cooled Exhaust Muffler with Installation Components, Later Prod 8 1
VP-MD6, VP-MD7 https://powerproductsystems.com/engines-live/marine-diesel-engines/7742080.html Fig 13636. Cooling System, Induction- and Exhaust Manifold: A 48 1
MD6, MD6A, MD6B, MD7, MD7A, MD7B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742080.html Fig 13702. Outer Exhaust Line and Exhaust Bend 3 1
MD6, MD6A, MD6B, MD7, MD7A, MD7B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742080.html Fig 13725. Water Cooled Exhaust Muffler with Installation Components, Earl. Pr.: A 51 1
MD6, MD6A, MD6B, MD7, MD7A, MD7B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742080.html Fig 13726. Water Cooled Exhaust Muffler with Installation Components, Later Prod 8 1
