1147147 Marine

Cartouche de filtre

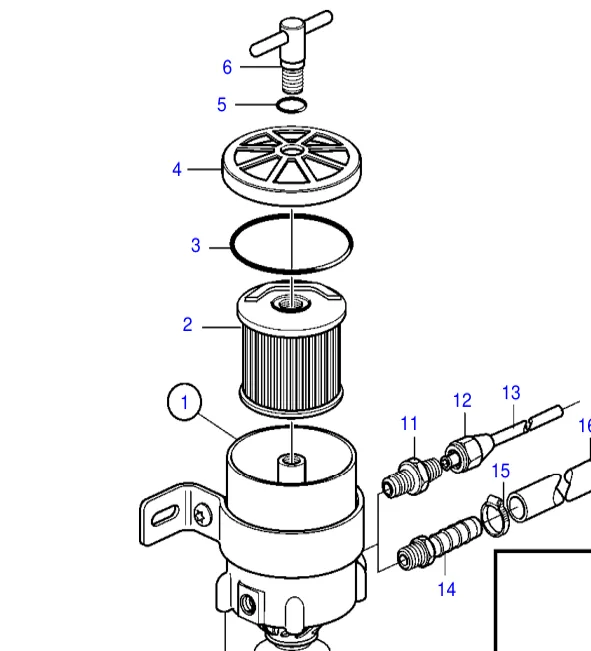

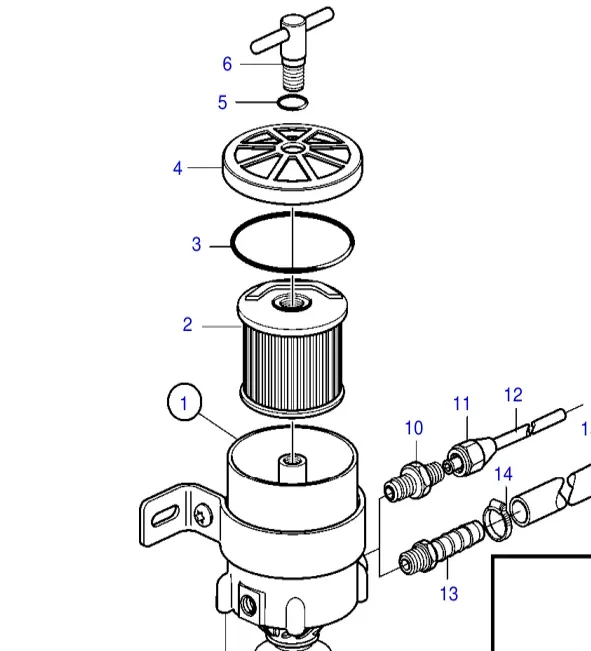

1147147 — Cartouche de filtre exploded diagram
Ref 2
Fig 23-9024

1147147 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-50 50hpVolvo Penta D2-55 55hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
2010SM-OR Racor VP 500FG/M family 2-micron element → Racor 2010SM-OR (Marine Parts Express VP↔Racor table) - depth:fuel-separators legacy.marinepartsexpress.com confirmed
AMZeBayAli

Used in 8 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
Fig 23-9024 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9024. Fuel Filter and Water Separator (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 108 2 1
Fig 23-9025 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9025. Fuel Filter and Water Separator, RINA-approved (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 110 2 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-9024. Fuel Filter and Water Separator (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 66 2 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-9025. Fuel Filter and Water Separator, RINA-approved (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 52 2 1
VP-D2-55 D2-55 Parts Catalog Fig 23-37059. Fuel Filter and Water Separator, RINA-approved 281 2 1
VP-D2-55 D2-55 Parts Catalog Fig 23-9024. Fuel Filter and Water Separator 71 2 1
VP-D2-55 D2-55 Parts Catalog Fig 23-9025. Fuel Filter and Water Separator, RINA-approved 58 2 1
VP-D2-55 D2-55 Parts Catalog Fig 23-292. Fuel Filter and Water Separator 60 2 1
