3517857 Marine

Filtre huile

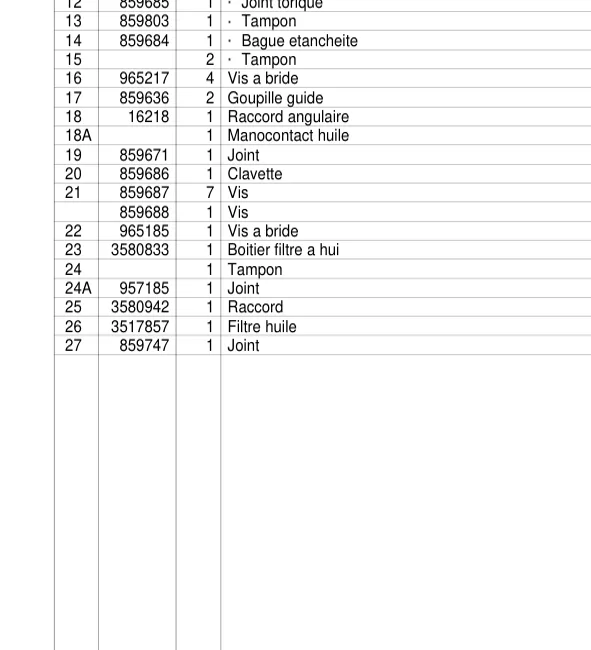

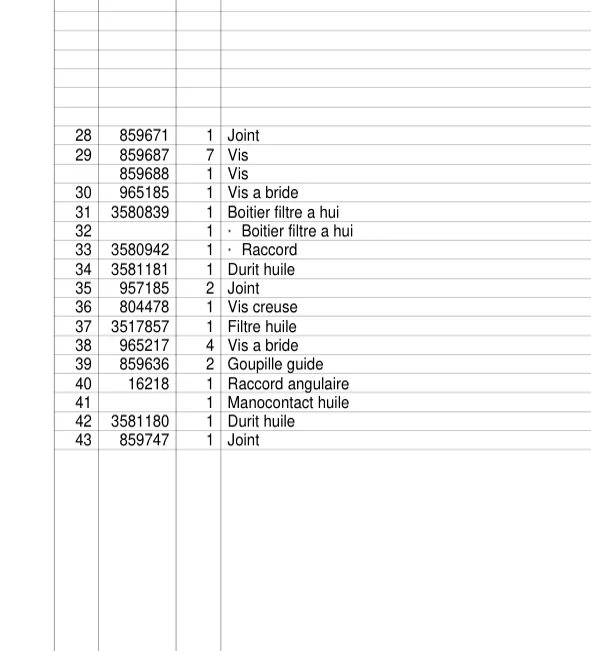

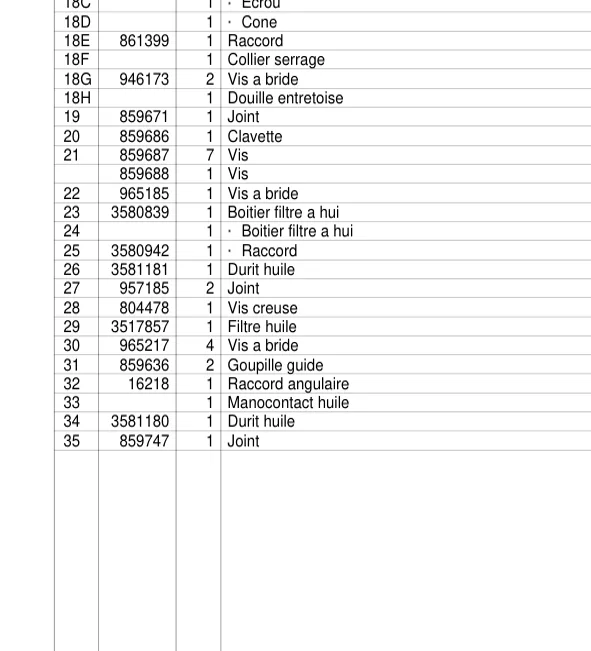

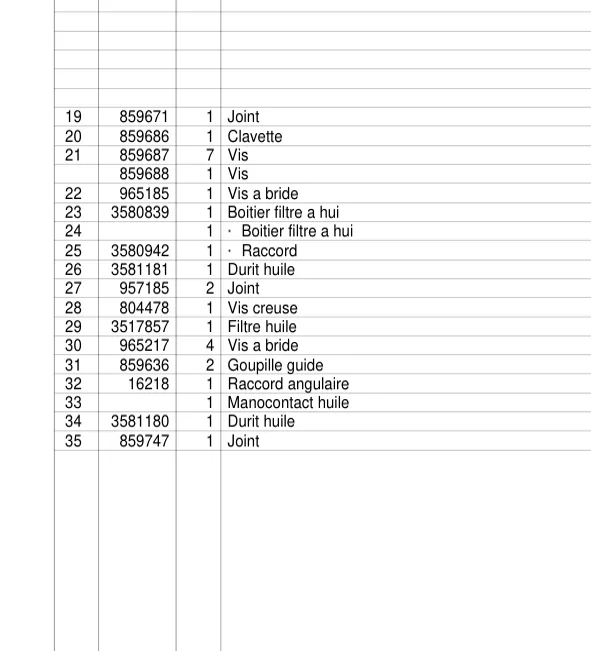

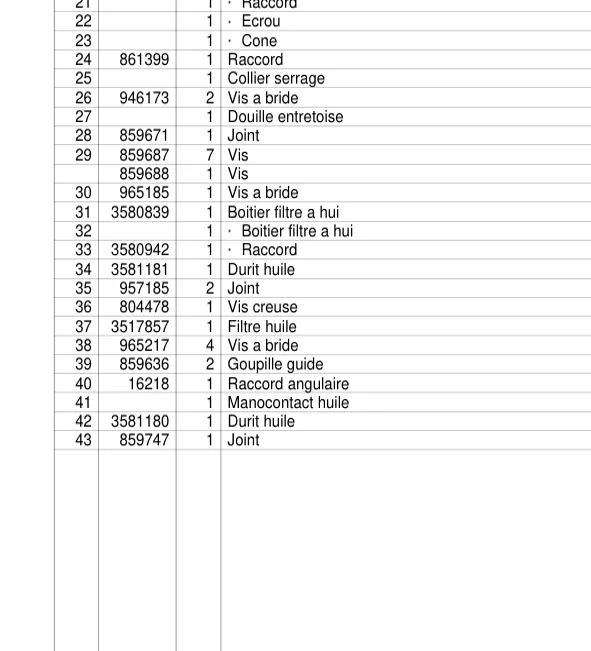

3517857 — Filtre huile exploded diagram
Ref 29
Fig 22-2858

3517857 — Affiliate Parts Search

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
18-7878-1 Sierra Sierra 18-7878-1 listed among VP 3517857 crosses (Marisol Marine) marisolmarine.com likely
W917 Mann MD22P/TMD22 family oil filter on BOM as 3517857. Mann W917 is the OE spin-on (ipdusa + Marisol Marine). ipdusa.com confirmed
WL7124 WIX WIX WL7124 cross for VP 3517857 (spareto OE table) spareto.com confirmed

Used in 13 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
VP-MD30 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744050.html Fig 18142. Oil Filter and Installation Components: 842584 16 1
VP-MD21B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742100.html Fig 13870. Lubricating System: MD21B/110S 22 1
Fig 22-2860 VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 22-2860. Oil pump, components 35 26 1
Fig 22-6143 VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 22-6143. Oil pump, components 37 26 1
Fig 22-6144 VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 22-6144. Oil pump, components: MD22P-B 43 37 1
Fig 22-2858 VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 22-2858. Oil pump, components: MD22P-B 39 29 1
Fig 22-6144B VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 22-6144B. Oil pump, components: TMD22-B, TMD22P-C, TAMD22P-B 45 37 1
Fig 22-2858B VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 22-2858B. Oil pump, components: TMD22-B, TMD22P-C, TAMD22P-B 41 29 1
VP-MD31, VP-TAMD31 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19124. Oil Filter and Installation Components: A 15 1
MD31A, TMD31A, TMD31B, TAMD31A, TAMD31B, AD31A, AQAD31A, AD31B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19125. Oil Filter and Installation Components: TAMD31A SOLAS 16 1
VP-TAMD31 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19126. Oil Filter and Installation Components 16 1
VP-TAMD31 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19127. Oil Filter and Installation Components 16 1
VP-MD31, VP-TAMD31 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745910.html Fig 20319. Oil Filter and Installation Components: A 14 1
