3581078 Marine

Cartouche de filtre

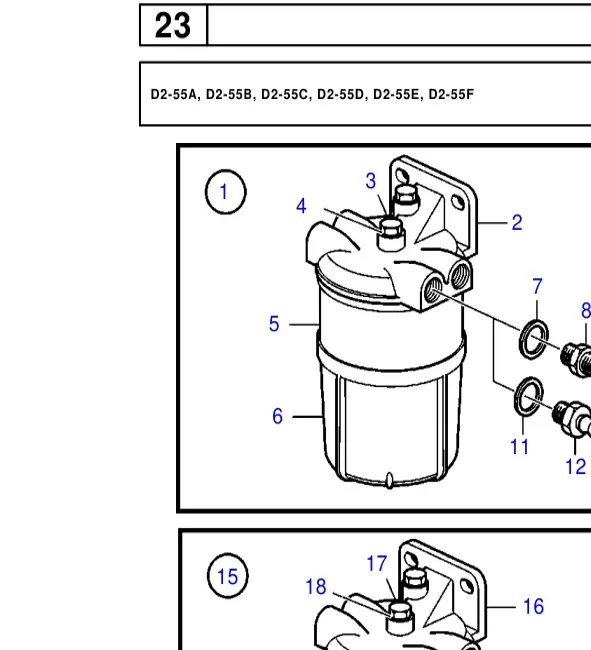

3581078 — Cartouche de filtre exploded diagram
Ref 5
Fig 23-9044

3581078 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
MD22L 50hpMD22P 59hpTMD22 / TAMD22 78hpVolvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-50 50hpVolvo Penta D2-55 55hpVolvo Penta MD2010 10hpVolvo Penta MD2020 10hpVolvo Penta MD2030 15hpVolvo Penta MD2040 21hp

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

14776

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
33142 WIX Fuel filter cross; WIX reference for Westerbeke 14776 fuelfilter-crossreference.com likely
AMZeBayAli
BF825 Baldwin Baldwin fuel filter element cross-reference for VP 3581078. fuelfilter-crossreference.com confirmed
AMZeBayAli
1457434201 Bosch Bosch N4201 fuel filter element cross-reference for VP 3581078. fuelfilter-crossreference.com confirmed
AMZeBayAli
P556245 Donaldson Donaldson fuel filter element cross-reference for VP 3581078. fuelfilter-crossreference.com confirmed
AMZeBayAli
FF167 Fleetguard Fleetguard fuel filter element cross-reference for VP 3581078. fuelfilter-crossreference.com confirmed
AMZeBayAli
E75KD42 Hengst Hengst fuel filter element cross-reference for VP 3581078. Confirmed via fuelfilter-crossreference.com. fuelfilter-crossreference.com confirmed
AMZeBayAli
KX23D Mann Fuel filter element for D1-13/D1-20/MD2010/MD2020 and early D1-30. Mann/Mahle cross confirmed at fuelfilter-crossreference.com (42 cross-refs listed). fuelfilter-crossreference.com confirmed
AMZeBayAli
33166 WIX Wix fuel filter element cross-reference for VP 3581078. fuelfilter-crossreference.com confirmed
AMZeBayAli

Used in 10 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11820. Fuel Filter and Connecting Components 6 1
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11821. Fuel Filter: 821092 11 1

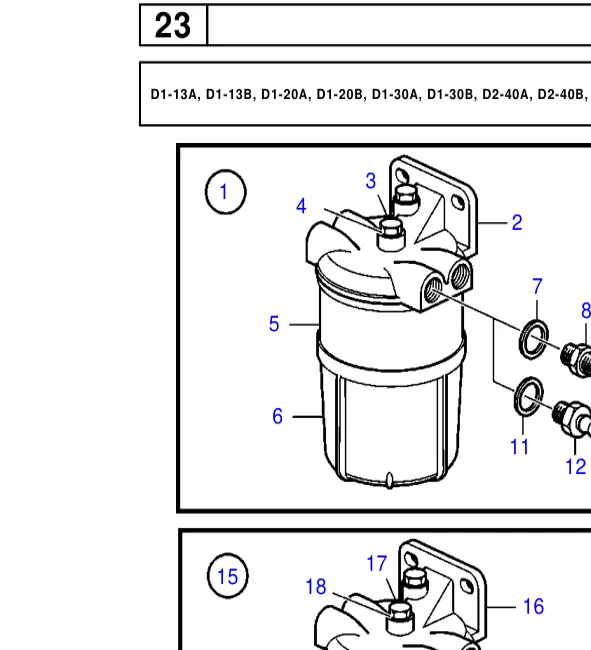

Fig 23-9044 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9044. Fuel Filter and Water Separator (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 112 5 1
Fig 23-9044 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9044. Fuel Filter and Water Separator (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 112 19 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-9044. Fuel Filter and Water Separator (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 60 5 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-9044. Fuel Filter and Water Separator (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 60 19 1
VP-D2-55 D2-55 Parts Catalog Fig 23-9044. Fuel Filter and Water Separator 64 5 1
VP-D2-55 D2-55 Parts Catalog Fig 23-9044. Fuel Filter and Water Separator 64 19 1
VP-MD2010, VP-MD2020, VP-MD2030, VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 273. Fuel Filter and Water Separator 6 1

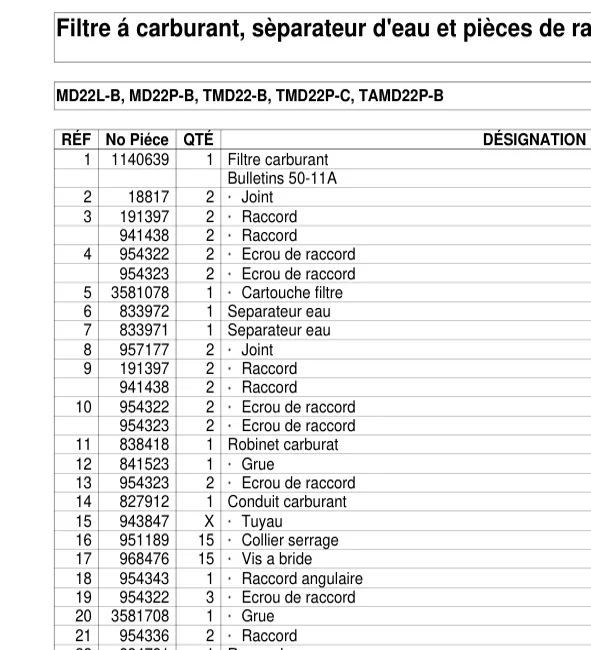

Fig 23-363 VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 23-363. Fuel filter, Water separator et Parts de connection 76 5 1
