Home › Part 3593655
3593655 Marine
Sea water pump Bulletin 43-19A
Ref 1
Fig 26-8344
3593655 — Affiliate Parts Search
As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More
Fitted to
Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.
EnginesOEM interchange
Other OEM part numbers for the same part — order from any of these makers or their dealers.
Aftermarket equivalents cross-ref
Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.
| Equivalent P/N | Brand | Description | Source | Confidence | Shop |
|---|---|---|---|---|---|
| JPR-VP0019P | JMP | JMP complete sea water pump body for D1-30 / D2-40 / MD2030 / MD2040. Replaces Johnson 10-24752-01 / 10-24465-01 and Jabsco 29450-1231. | ab-marineservice.com; jmpusamarine.com | confirmed | |
| 29450-1231 | Jabsco | AB Marine lists Jabsco 29450-1231 as replaced PN for same D1-30/D2-40/MD2030/MD2040 pump - depth:water-pumps | ab-marineservice.com | confirmed | |
| 10-24752-01 | Johnson | AB Marine: Johnson 10-24752-01 for VP 3593655; JMP/RecMar/Jabsco already live · DEPTH-V1505-RWP | ab-marineservice.com | confirmed | |
| REC3593655 | Recmar | Complete raw water pump for D1-30 / D2-40 / MD2030 / MD2040. Poseidon Marine confirmed. RecMar direct replacement. | poseidonmarine.eu | confirmed |
Used in 2 places
Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.
| Model(s) | Catalog | Figure | Page | Ref | Lev | Qty | |
|---|---|---|---|---|---|---|---|
 Fig 26-8344 |

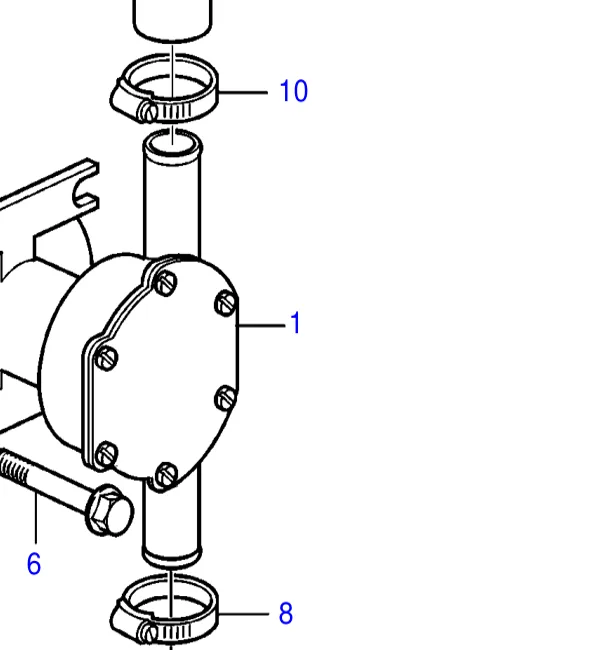

VP-D1-30, VP-D2-40 | D1-13 D1-20 D1-30 D2-40 Parts Catalog | Fig 26-8344. Sea Water Pump (D1-30A, D1-30B, D2-40A, D2-40B, D1-30F, D2-40F) | 170 | 1 | 1 | |
 Fig 26-9344 |

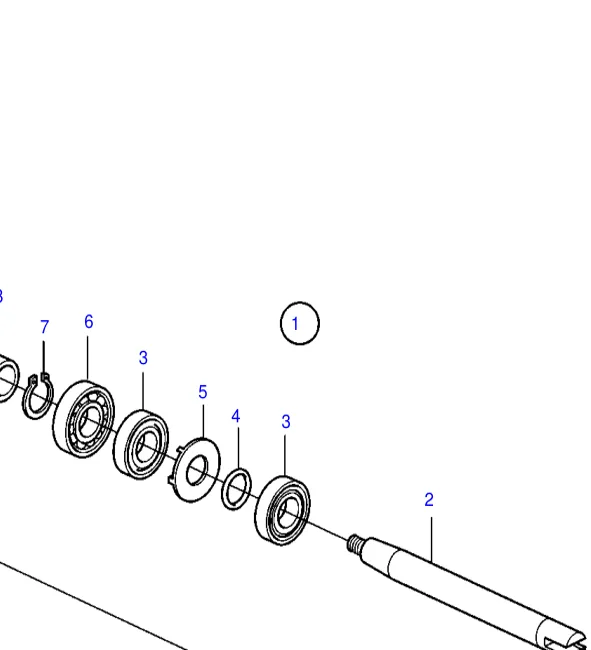

VP-D1-30, VP-D2-40 | D1-13 D1-20 D1-30 D2-40 Parts Catalog | Fig 26-9344. Sea Water Pump, Components (D1-30A, D1-30B, D2-40A, D2-40B, D1-30F, D2-40F) | 174 | 1 | 1 |
