3842015 Marine

Thermostat

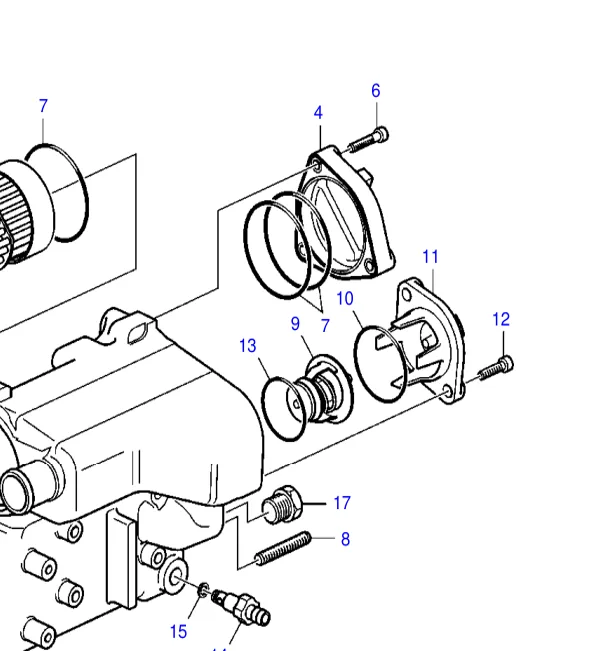

3842015 — Thermostat exploded diagram
Ref 9
Fig 26-9710

3842015 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
REC3842015 Recmar Thermostat (82°C) for D1-13 / D1-20 / D1-30 / D2-40. No named third-party brand cross-ref confirmed; SVB24 / parts4engines list this as a direct-fit aftermarket replacement. svb24.com likely
AMZeBayAli

Used in 12 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9708. Heat Exchanger, Components 9 1
VP-D1-20 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9709. Heat Exchanger, Components 9 1
VP-D1-30 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9710. Heat Exchanger, Components 9 1
VP-D2-40 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9711. Heat Exchanger, Components 9 1

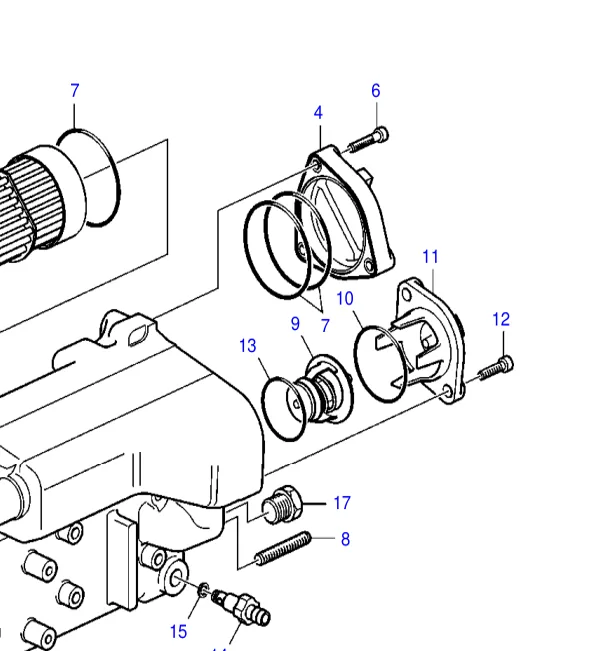

Fig 26-9708 VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-9708. Heat Exchanger, Components (D1-13A, D1-13B, D1-13F) 142 9 1

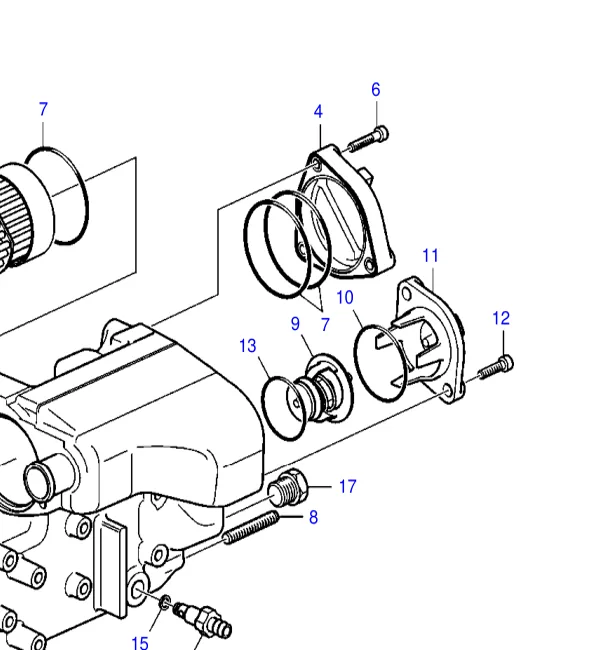

Fig 26-9709 VP-D1-20 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-9709. Heat Exchanger, Components (D1-20A, D1-20B, D1-20F) 148 9 1
Fig 26-9710 VP-D1-30 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-9710. Heat Exchanger, Components (D1-30A, D1-30B, D1-30F) 154 9 1

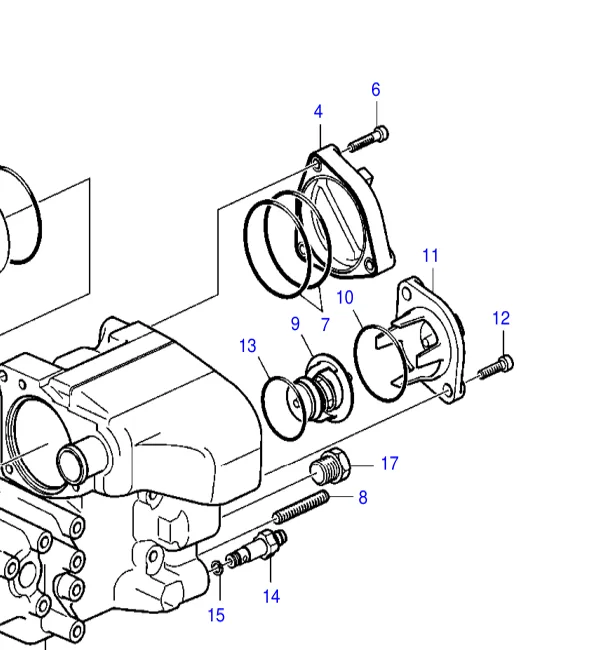

Fig 26-9711 VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-9711. Heat Exchanger, Components (D2-40A, D2-40B, D2-40F) 160 9 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
