833996 Marine

Sealing ring

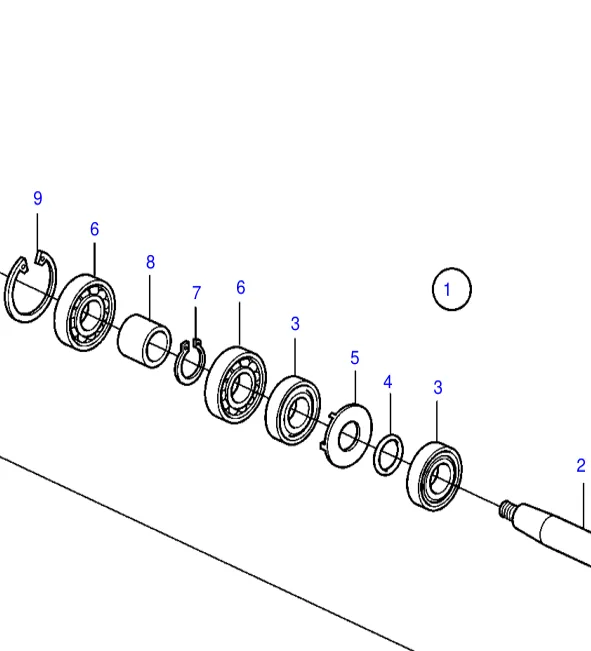

833996 — Sealing ring exploded diagram
Ref 3
Fig 26-4153

833996 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta MD11C 17hpVolvo Penta MD17C/D 36hpVolvo Penta MD5A/B/C 7.5hpVolvo Penta MD6A/B 10hpVolvo Penta MD7A/B 13.4hp

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

0.2233.010970434031STM6169

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
29460-2501 Jabsco Jabsco 29460-2501 = Nanni 970434031 / Johnson 05-29-139. marineservicekits.co.uk confirmed
AMZeBayAli
0.2233.010 Johnson F35B/F4B pump shaft lip seal 12x24x7. Aquafax: Johnson 0.2233.010 / 05-29-139; Marine Service Kits = Nanni 970434031 = Jabsco 29460-2501 = VP 833996. aquafax.co.uk; jachtwerf-dewijdeblick.com confirmed
AMZeBayAli
05-29-139 Johnson Johnson 05-29-139 = Nanni 970434031 F35B/F4B pump shaft seal (2 per pump). marineservicekits.co.uk confirmed
AMZeBayAli
18-2044 Sierra Raw-water pump shaft lip seal. Sierra 18-2044 replaces VP 833996; dims 12x24x7 mm (Green Bay Prop). Used 2x per MD2010-MD2040 / D1/D2 small pump rebuild. greenbayprop.com confirmed
AMZeBayAli
12x24x7 Skf/Cr Order-by-size rotary shaft seal 12x24x7 for VP 833996. Prefer Viton + stainless garter spring for seawater (AB Marine / Cruisers Forum). ab-marineservice.com confirmed
AMZeBayAli
TC 12x24x7 Skf/Cr Johnson F4B-9 pump lip seal 12x24x7 on Lombardini OEM pump ED0065842450; Johnson datasheet pos.10 LIP SEAL 12X24X7 DPSM; cross-brand VP 833996 / Nanni 970434031 depcopump.com; jachtwerf-dewijdeblick.com confirmed
AMZeBayAli

Standard component cross-ref

An industry-standard component — buy from any bearing / seal / o-ring house; just specify the designation.

Equivalent P/NBrandDescriptionSourceConfidenceShop
12x24x7 Seal Any-house lip seal 12x24x7 mm = VP 833996 raw-water pump shaft seal. Stainless spring recommended for salt water. depcopump.com; greenbayprop.com; marineservicekits.co.uk; vetus-shop.com confirmed
AMZeBayAli

Used in 20 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11633. Sea Water Pump: 840557 9 1
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11633. Sea Water Pump: 840557 15 1
Fig 26-4153 VP-D1-13, VP-D1-20 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-4153. Sea Water Pump, Components (D1-13A, D1-13B, D1-20A, D1-20B, D1-13F, D1-20F) 172 3 2
Fig 26-9344 VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-9344. Sea Water Pump, Components (D1-30A, D1-30B, D2-40A, D2-40B, D1-30F, D2-40F) 174 3 2
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 2
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 2
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 2
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 2
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02B-0600D. Water pump: 833883 106 13 2
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02B-0625. Water pump: 829895 108 12 2
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02B-0650. Water pump: 840076 110 13 2
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 10A-0150B. KITS DE REPARATION: MD17 244 ▲ 2
VP-MD5 Volvo Penta MD5 Parts Catalog (FR) Fig 02B-0600. Water pump: 833883 50 13 2
VP-MD5 Volvo Penta MD5 Parts Catalog (FR) Fig 02B-0650. Water pump: 840076 52 13 2
VP-MD5 Volvo Penta MD5 Parts Catalog (FR) Fig 10A-0200B. KITS DE REPARATION: MD5C 149 ▲ 2
VP-MD5 Volvo Penta MD5 Parts Catalog (FR) Fig 10A-0200. KITS DE REPARATION: MD5A,MD5B 148 ▲ 2
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 02B-0600. Water pump: 833883 75 13 2
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 02B-0650. Water pump: 840076 77 13 2
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 10A-0250B. KITS DE REPARATION: MD7 223 ▲ 2
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 10A-0250. KITS DE REPARATION: MD6 221 ▲ 2
