861460 Marine

Rubber cushion

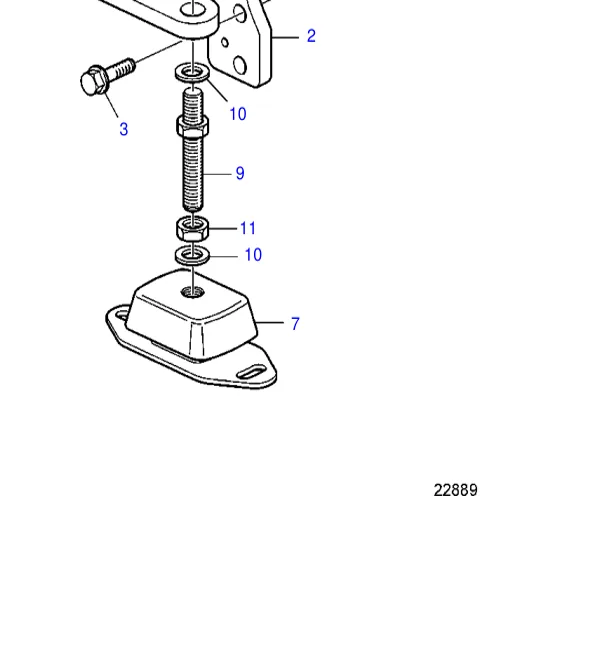

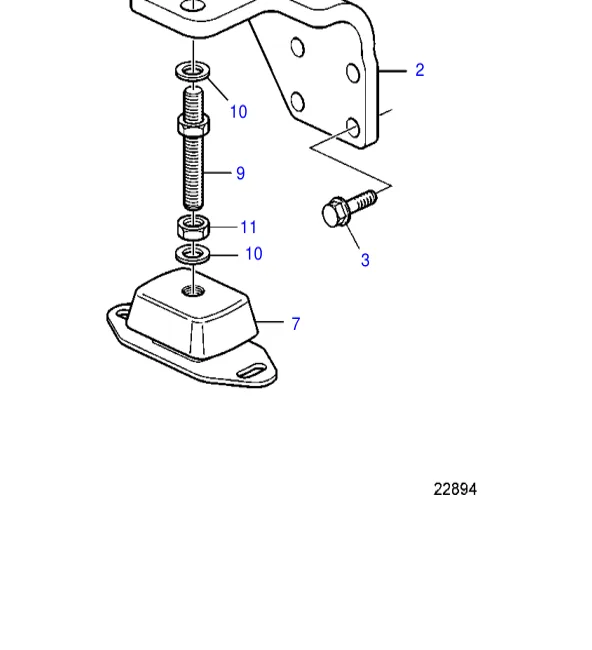

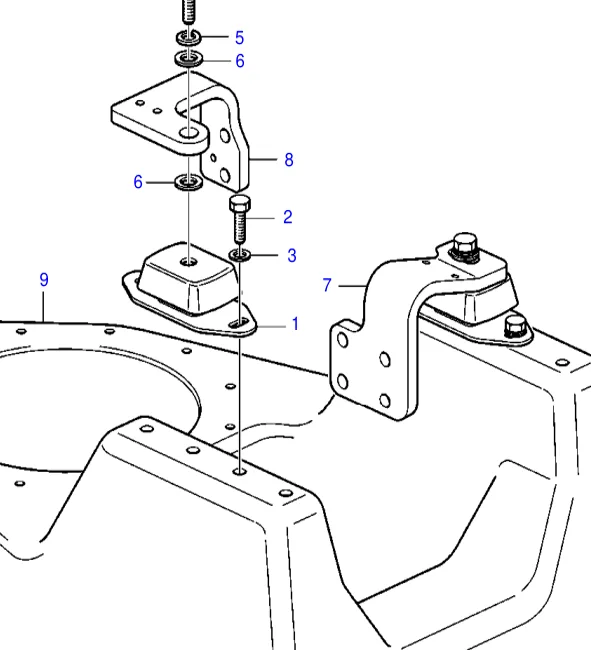

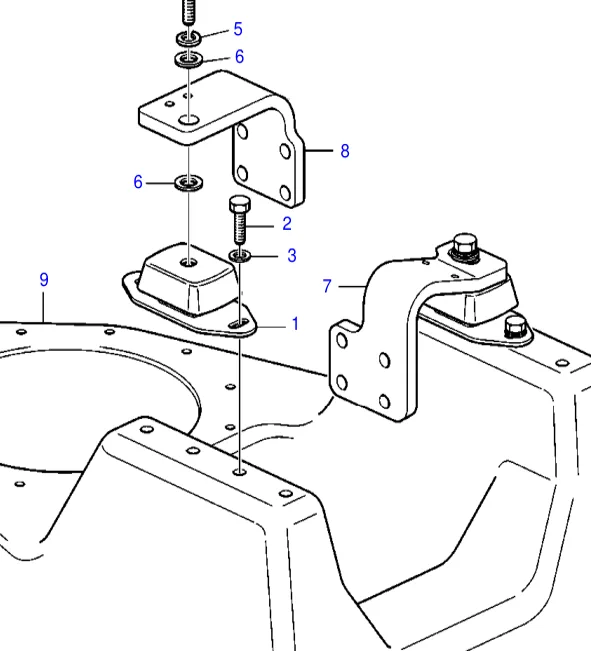

861460 — Rubber cushion exploded diagram
Ref 7
Fig 21-8307

861460 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D2-40 40hpVolvo Penta MD2010 10hpVolvo Penta MD2020 10hpVolvo Penta MD2030 15hpVolvo Penta MD2040 21hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
Ellebogen GT-M35 Ellebogen Volvo Penta rubber cushion — Ellebogen GT-M35 page lists OEM 861460; hardness 35Sh; max static 95 kg. Fits MD2010–2040 / D1–D2 family per page tags. - depth:engine-mounts ellebogen.com confirmed
AMZeBayAli

Used in 16 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8296. Engine Suspension, Sail Boat Drive Unit 1 4
VP-D1-20 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8297. Engine Suspension, Sail Boat Drive Unit 1 4
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8304. Engine Suspension for Reverse Gear 7 4
VP-D2-40 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8307. Engine Suspension for Reverse Gear 7 4
Fig 21-8296 VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-8296. Engine Suspension, Sail Boat Drive Unit (D1-13A, D1-13B, D1-13F) 64 1 2
Fig 21-8297 VP-D1-20 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-8297. Engine Suspension, Sail Boat Drive Unit (D1-20A, D1-20B, D1-20F) 66 1 2
Fig 21-8307 VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-8307. Engine Suspension for Reverse Gear (D2-40A, D2-40B, D2-40F) 76 7 4
Fig 21-8304 VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 21-8304. Engine Suspension for Reverse Gear (D1-13A, D1-13B, D1-13F) 62 7 4
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 153. Engine Mounting: MS2A-D, MS2L-D 4 2
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 155. Engine Mounting: MS2A-D, MS2L-D 4 2
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 157. Engine Mounting: MS2A-D, MS2L-D 4 2
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 159. Engine Mounting: MS2L-D, MS2A-D 5 2
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2409. Engine Mounting: MS2A-D, MS2L-D 4 2
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2410. Engine Mounting: MS2A-D, MS2L-D 4 2
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2411. Engine Mounting: MS2A-D, MS2L-D 4 2
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2412. Engine Mounting: MS2L-D, MS2A-D 5 2
