861477 Marine

Fuel filter

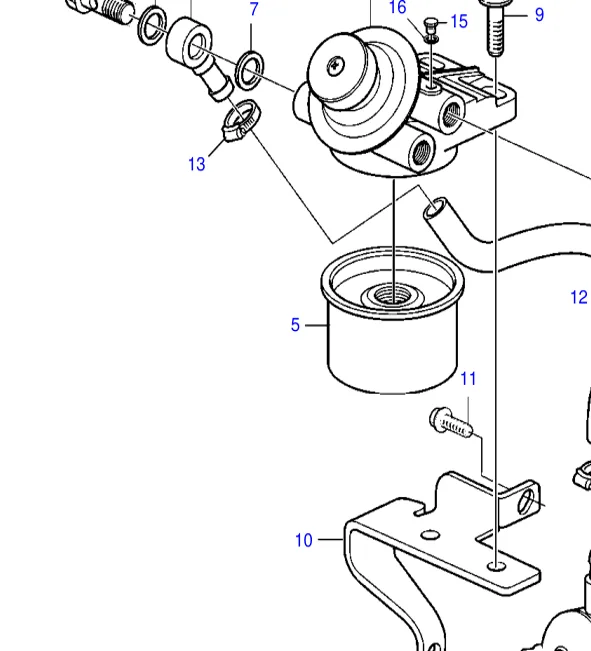

861477 — Fuel filter exploded diagram
Ref 5
Fig 23-35023

861477 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-50 50hpVolvo Penta D2-55 55hpVolvo Penta D2-60 60hpVolvo Penta D2-75 75hpVolvo Penta MD2010 10hpVolvo Penta MD2020 10hpVolvo Penta MD2030 15hpVolvo Penta MD2040 21hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
FF5114 Fleetguard Fleetguard fuel filter cross-reference for VP 861477 / 861477-8. Confirmed via fuelfilter-crossreference.com. fuelfilter-crossreference.com confirmed
AMZeBayAli
H168WK Hengst Hengst fuel filter for D1-30/D2-40/D2-50/D2-55/D2-60/D2-75/MD2030/MD2040. SVB24 confirmed. svb24.com confirmed
AMZeBayAli
WK 811/86 Mann Fuel filter (spin-on) for D1-30 / D2-40 / D2-50 / D2-55 / D2-60 / D2-75 / MD2030 / MD2040. VP P/N also cited as 861477-8. AB Marine Service confirmed. ab-marineservice.com confirmed
AMZeBayAli

Used in 37 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9287. Fuel Filter and Feed Pump 5 1
VP-D1-20 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9290. Fuel Filter and Feed Pump 5 1
VP-D1-30, VP-D2-40 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 9547. Fuel Filter and Feed Pump 8 1
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 35023. Fuel Filter and Feed Pump 5 1
Fig 23-35023 VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-35023. Fuel Filter and Feed Pump (D1-13F) 102 5 1
Fig 23-9287 VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9287. Fuel Filter and Feed Pump (D1-13A, D1-13B) 100 5 1
Fig 23-9290 VP-D1-20 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9290. Fuel Filter and Feed Pump (D1-20A, D1-20B, D1-20F) 104 5 1
Fig 23-9547 VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9547. Fuel Filter and Feed Pump (D1-30A, D1-30B, D2-40A, D2-40B, D1-30F, D2-40F) 106 8 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-35134. Fuel Filter and Feed Pump (D2-55F) 50 6 1
VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-6754. Fuel Filter and Feed Pump (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E) 48 6 1
VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-5489. Fuel Filter and Feed Pump (D2-55A) 46 12 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 90-5519. Universal Bracket for S-drive (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 257 ▲ 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 90-5519. Universal Bracket for S-drive (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 257 ▲ 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 90-5519. Universal Bracket for S-drive (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 257 ▲ 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 90-5519. Universal Bracket for S-drive (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 257 ▲ 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 90-5519. Universal Bracket for S-drive (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 257 ▲ 1
VP-D2-55 D2-55 Parts Catalog Fig 23-35134. Fuel Filter and Feed Pump 46 6 1
VP-D2-55 D2-55 Parts Catalog Fig 23-6754. Fuel Filter and Feed Pump 44 6 1
VP-D2-55 D2-55 Parts Catalog Fig 23-5489. Fuel Filter and Feed Pump 42 11 1
VP-D2-55 D2-55 Parts Catalog Fig 99-5516. Repair Kits 274 ▲ 1
VP-D2-55 D2-55 Parts Catalog Fig 99-5516. Repair Kits 274 ▲ 1
VP-D2-55 D2-55 Parts Catalog Fig 99-5516. Repair Kits 274 ▲ 1
VP-D2-55 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744440.html Fig 5489. Fuel Filter and Feed Pump 12 1
VP-D2-75 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744450.html Fig 6754. Fuel Filter and Feed Pump 6 1
VP-D2-60, VP-D2-75 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744450.html Fig 35134. Fuel Filter and Feed Pump 6 1
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 166. Fuel System 7 1
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 167. Fuel System 7 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 169. Fuel System 13 1
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 170. Fuel System 7 1
