876286 Marine

Kit bague de zinc

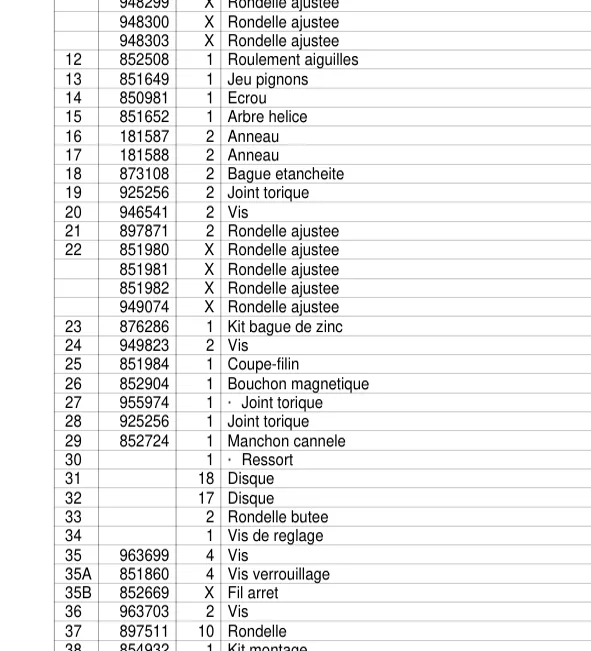

876286 — Kit bague de zinc exploded diagram
Ref 23
Fig 44-350

876286 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
MD22L 50hpMD22P 59hpTMD22 / TAMD22 78hp
Saildrives & gearboxes
Volvo Penta Saildrive 120S

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

851983

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
CM851983Z Martyr Volvo 120S saildrive; 120S/B/C/D/E + MS25S westmarine.com confirmed
AMZeBayAli
00706 Tecnoseal 120S saildrive solid-ring zinc anode variant (non-split). Same application as 00706-1 (split ring) - choice depends on installation preference. hodgesmarine.com confirmed
AMZeBayAli
00706-1 Tecnoseal 120S saildrive split-ring zinc anode. Supersedes VP 851983. Tecnoseal 00706-1 confirmed at Hodges Marine - part listing explicitly states VP 876286 / 851983. Fits 120 / 120B / 120C / 120D / 120E / MS25 / MS25S / MS25SA / MS25SR / S120C. hodgesmarine.com confirmed
AMZeBayAli

Used in 9 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11750. Lower Gear Unit Sail Boat Drive Unit 120SB: 852700 23 1
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11751. Lower Gear Unit Sail Boat Drive Unit S120C: 853657 23 1
MD11, MD11C, MD11D, MD17, MD17C, MD17D https://powerproductsystems.com/engines-live/marine-diesel-engines/7742230.html Fig 15169. Lower Gear Unit Sail Boat Drive Unit 120S: 852487 28 1
VP-SD120S https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 214. Lower Gear Unit 23 1
MD2010C, MD2010D, MD2020C, MD2020D, MD2030C, MD2030D, MD2040C, MD2040D, 120S-D, 120S-E https://powerproductsystems.com/engines-live/marine-diesel-engines/7740690.html Fig 4203. Lower Gear Unit: 120S-E 23 1
Fig 44-350 VP-MD22L, VP-TMD22 Volvo Penta MD22 (A) Parts Catalog Fig 44-350. Engrenage inferieur: 873107 203 23 1
Fig 44-6156 VP-MD22L, VP-MD22P, VP-TMD22 Volvo Penta MD22 (B) Parts Catalog Fig 44-6156. Engrenage inferieur: 3856864 229 23 1
MD5A, MD5B, MD5C https://powerproductsystems.com/engines-live/marine-diesel-engines/7742220.html Fig 15043. Lower Gear Unit Sail Boat Drive Unit 120S: 852487 28 1
MD6, MD6A, MD6B, MD7, MD7A, MD7B https://powerproductsystems.com/engines-live/marine-diesel-engines/7742080.html Fig 13692. Lower Gear Unit Sail Boat Drive Unit 120S: 852487 28 1
