877762 Marine

Fuel strainer

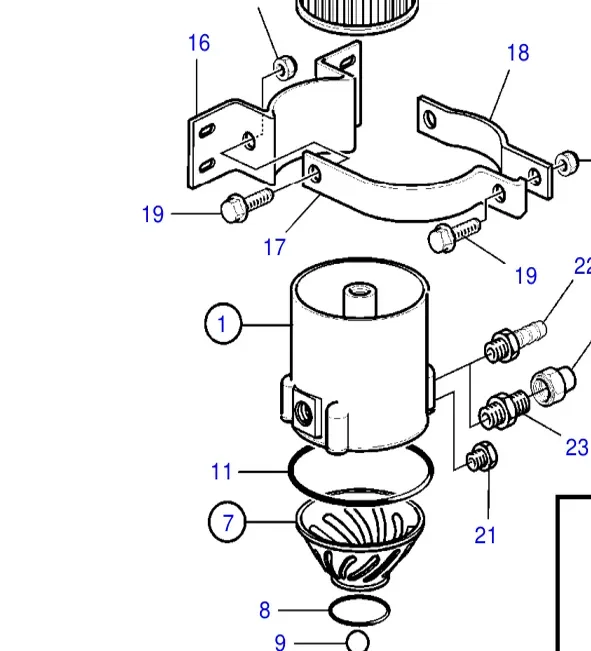

877762 — Fuel strainer exploded diagram
Ref 1
Fig 23-292

877762 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-50 50hpVolvo Penta D2-55 55hpVolvo Penta MD30 / TMD30 / TAMD30 / AD30 65hpVolvo Penta MD31 61hpVolvo Penta TAMD31 / TMD31 / AD31 150hpVolvo Penta TAMD41 / TMD41 / AD41 / D41 200hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
500FG30 Racor French Marine lists Racor 500FG30 replaces Volvo 877762 — confirm metal vs see-thru bowl before confirmed - depth:fuel-separators frenchmarine.com likely
AMZeBayAli

Used in 16 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
VP-MD30 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744050.html Fig 18265. Fuel Filter 1 1
VP-MD30 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744050.html Fig 18266. Fuel Filter 1 1
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 292. Fuel Filter and Water Separator 1 1
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 292. Fuel Filter and Water Separator 1 1
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 7783. Fuel Filter and Water Separator 1 1
VP-TAMD41 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746620.html Fig 364. Fuel Filter and Water Separator 1 1
Fig 23-9024 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9024. Fuel Filter and Water Separator (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 108 1 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-9024. Fuel Filter and Water Separator (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 66 1 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-292. Fuel Filter and Water Separator (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 56 1 1
VP-D2-55 D2-55 Parts Catalog Fig 23-9024. Fuel Filter and Water Separator 71 1 1
VP-D2-55 D2-55 Parts Catalog Fig 23-292. Fuel Filter and Water Separator 60 ▲ 1
MD31A, TMD31A, TMD31B, TAMD31A, TAMD31B, AD31A, AQAD31A, AD31B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19378. Fuel Filter 1 1
VP-MD31, VP-TAMD31 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745910.html Fig 20472. Fuel Filter 1 1
MD40A, TMD40A, TMD40B, TMD40C, AQD40A, TAMD40A, TAMD40B, AD40B, AQAD40A, AQAD40B https://powerproductsystems.com/engines-live/marine-diesel-engines/7744060.html Fig 18486. Fuel Filter 1 1
MD40A, TMD40A, TMD40B, TMD40C, AQD40A, TAMD40A, TAMD40B, AD40B, AQAD40A, AQAD40B https://powerproductsystems.com/engines-live/marine-diesel-engines/7744060.html Fig 18487. Fuel Filter 1 1
VP-TAMD41 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745920.html Fig 20655. Fuel Filter 1 1
