877763 Marine

Fuel strainer

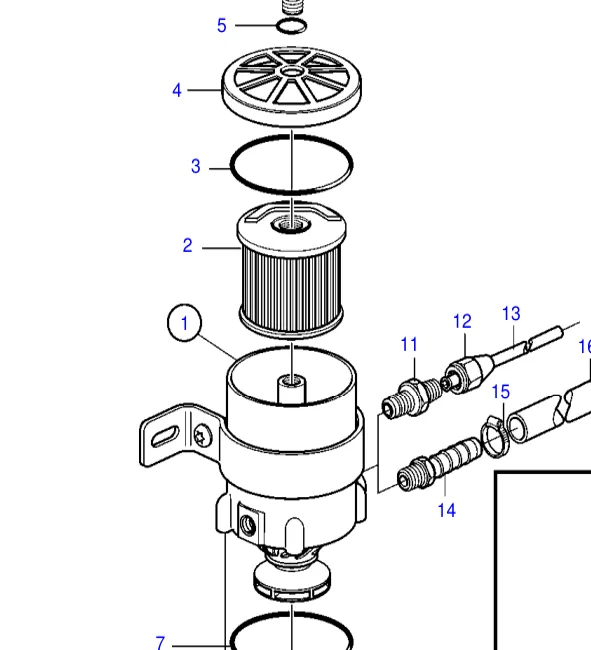

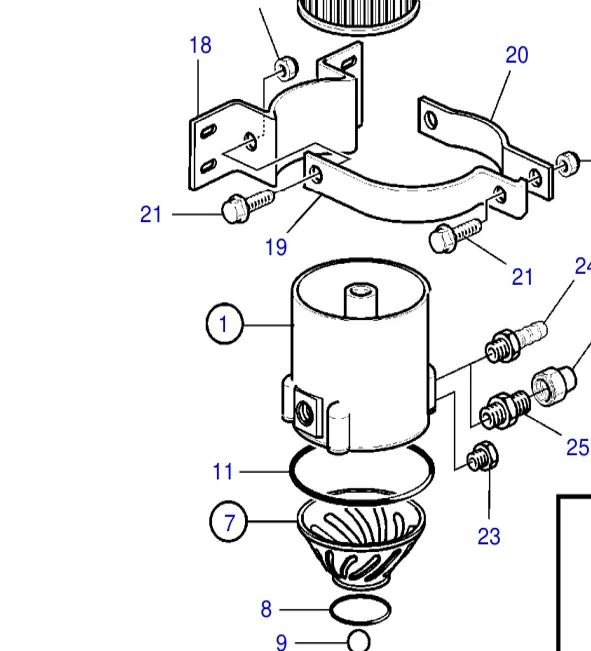

877763 — Fuel strainer exploded diagram
Ref 1
Fig 23-293

877763 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-50 50hpVolvo Penta D2-55 55hpVolvo Penta MD31 61hpVolvo Penta TAMD31 / TMD31 / AD31 150hpVolvo Penta TAMD41 / TMD41 / AD41 / D41 200hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
500MAM Racor VP fuel filter assembly 877763 → Racor 500MAM (ASAP listing) - depth:fuel-separators asap-supplies.com confirmed
AMZeBayAli

Used in 13 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 293. Fuel Filter and Water Separator, RINA-approved 1 1
AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TMD31L-A, TMD41L-A https://powerproductsystems.com/engines-live/marine-diesel-engines/7742700.html Fig 5107. Fuel Filter and Water Separator 1 1
VP-TAMD41 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746620.html Fig 660. Fuel Filter and Water Separator, RINA-approved 1 1
Fig 23-9025 VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 23-9025. Fuel Filter and Water Separator, RINA-approved (D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 110 1 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-9025. Fuel Filter and Water Separator, RINA-approved (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 52 1 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 23-293. Fuel Filter and Water Separator, RINA-approved (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 58 1 1
VP-D2-55 D2-55 Parts Catalog Fig 23-37059. Fuel Filter and Water Separator, RINA-approved 281 1 1
VP-D2-55 D2-55 Parts Catalog Fig 23-9025. Fuel Filter and Water Separator, RINA-approved 58 1 1
VP-D2-55 D2-55 Parts Catalog Fig 23-293. Fuel Filter and Water Separator, RINA-approved 62 ▲ 1
MD31A, TMD31A, TMD31B, TAMD31A, TAMD31B, AD31A, AQAD31A, AD31B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745620.html Fig 19379. Fuel Filter 1 1
VP-MD31, VP-TAMD31 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745910.html Fig 20473. Fuel Filter 1 1
TMD41A, TMD41B, D41A, D41B, TAMD41A, TAMD41B, AQAD41A, AD41A, AD41B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745630.html Fig 19691. Fuel Filter 1 1
VP-TAMD41 https://powerproductsystems.com/engines-live/marine-diesel-engines/7745920.html Fig 20656. Fuel Filter 1 1
