914515 Marine

Anneau verrouillage For piston marked mahle

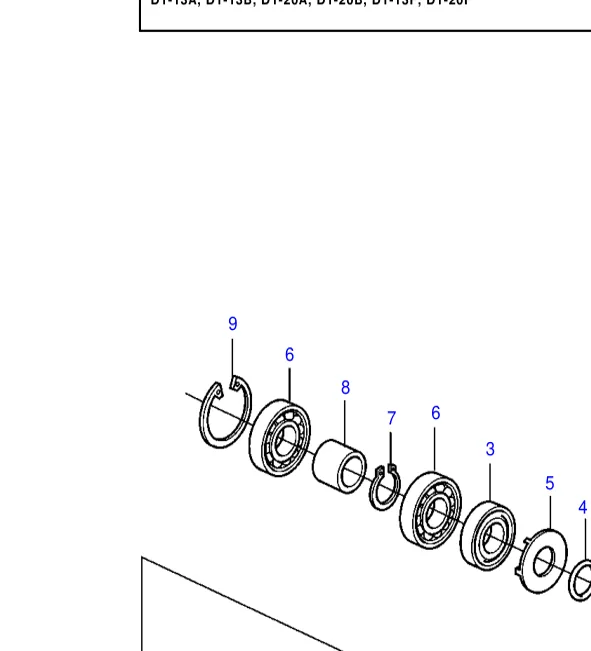

914515 — Anneau verrouillage For piston marked mahle exploded diagram
Ref 9
Fig 26-4153

914515 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta MD11C 17hpVolvo Penta MD17C/D 36hpVolvo Penta MD1B 10hpVolvo Penta MD27Volvo Penta MD29 92hpVolvo Penta MD2B 25hpVolvo Penta MD3B 36hpVolvo Penta MD6A/B 10hpVolvo Penta MD7A/B 13.4hp

OEM interchange

Same component rebadged by another engine marque — often the same part at a different dealer counter.

Equivalent P/NBrandDescriptionSourceConfidenceShop
560832 Indenor Kurbeltrieb: Sprengring, circlip, anello di ritegno indenor-retro.de (INDENOR XDP 6-cyl Ersatzteile Katalog 2013) confirmed
AMZeBayAli

Used in 31 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
2001, 2001B, 2001AG, 2001BG, 2002, 2002B, 2002D, 2002AG, 2002BG, 2003, 2003B, 2003D, 2003AG, 2003BG, 2003T, 2003TB, 2003-SOLAS, 2003B-SOLAS, 2003TB-SOLAS, 120S-A, 120S-B, 120S-D, 120S-E, 120S-C, MS2A, MS2A-D, MS2A-E, MS2A-S, MS2B, MS2B-A, MS2B-L, MS2B-R, https://powerproductsystems.com/engines-live/marine-diesel-engines/7726000.html Fig 11633. Sea Water Pump: 840557 17 1
Fig 26-4153 VP-D1-13, VP-D1-20 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-4153. Sea Water Pump, Components (D1-13A, D1-13B, D1-20A, D1-20B, D1-13F, D1-20F) 172 9 1
Fig 26-9344 VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 26-9344. Sea Water Pump, Components (D1-30A, D1-30B, D2-40A, D2-40B, D1-30F, D2-40F) 174 9 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02B-0625. Water pump: 829895 108 13 1
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02A-0850B. Crank mechanism: MD11D 19 25 4
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02A-0850. Crank mechanism: MD11C 17 25 4
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02A-0950B. Crank mechanism: MD17D 23 25 6
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 02A-0950. Crank mechanism: MD17C 21 25 6
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 10A-0150. KITS DE REPARATION: MD11 242 ▲ 4
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 10A-0150B. KITS DE REPARATION: MD17 244 ▲ 6
VP-MD11, VP-MD17 Volvo Penta MD11 MD17 Parts Catalog (FR) Fig 10A-0150B. KITS DE REPARATION: MD17 244 ▲ 1
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 02A-0750. Crank mechanism 19 18 2
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 02A-0800. Crank mechanism: MD2B 21 24 4
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 02A-0800B. Crank mechanism: AQD2B 23 24 4
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 02A-0900. Crank mechanism 25 24 6
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 10A-0100. KITS DE REPARATION: MD1B 199 ▲ 2
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 10A-0100B. KITS DE REPARATION: MD2B 201 ▲ 4
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 10A-0100C. KITS DE REPARATION: AQD2B 203 ▲ 4
VP-MD1B, VP-MD2B, VP-MD3B Volvo Penta MD1B MD2B MD3B Parts Catalog (FR) Fig 10A-0100D. KITS DE REPARATION: MD3B 205 ▲ 8
VP-MD27, VP-MD29 MD27-32-indenor-transcription.csv Fig 4. Kurbeltrieb 4
MD40A, TMD40A, TMD40B, TMD40C, AQD40A, TAMD40A, TAMD40B, AD40B, AQAD40A, AQAD40B https://powerproductsystems.com/engines-live/marine-diesel-engines/7744060.html Fig 18458. Mechanical Lift Device AQ Drive Unit 280: 850957 14 1
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 02A-1050B. Crank mechanism: MD6B 17 15 4
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 02A-1050. Crank mechanism: MD6A 15 ▲ 4
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 02A-1050D. Crank mechanism: MD7B 21 15 4
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 02A-1050C. Crank mechanism: MD7A 19 15 4
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 10A-0250B. KITS DE REPARATION: MD7 223 ▲ 4
VP-MD6, VP-MD7 Volvo Penta MD6 MD7 Parts Catalog (FR) Fig 10A-0250. KITS DE REPARATION: MD6 221 ▲ 4
