Yanmar › Part 121450-01801

121450-01801 Marine

SEAL, TC25408

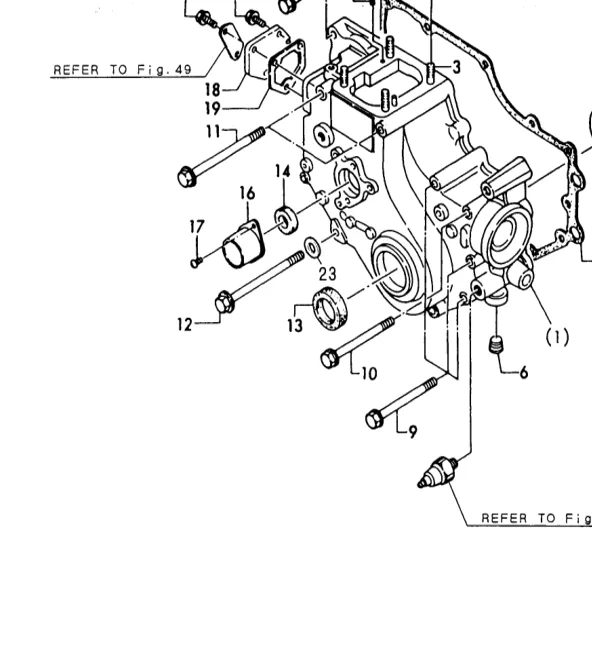

121450-01801 — SEAL, TC25408 exploded diagram
Ref 13
Fig 3
3GM30-YEU_3GM30C-YEU_3GM30F-YEU_3GM30FC-YEU

121450-01801 — Affiliate Parts Search

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines

Supersession

Replaces (older)
Part No.DescriptionCodeApplies
121450-01800 SEAL, OIL N A=E/#11483; D=E/#01177; C=E/#00343; E=E/#11458

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

Standard component cross-ref

An industry-standard component — buy from any bearing / seal / o-ring house; just specify the designation.

Equivalent P/NBrandDescriptionSourceConfidenceShop
TC 25x40x8 Seal Oil seal TC 25x40x8 (also sold as Skf/Cr TC 25x40x8) 1GM10_VE_B_C_L.pdf p9 description confirmed

Used in 9 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
1GM 1GM_2GMF_3GMF_3GMD_3HM_3HMF Fig 3. GEAR HOUSING 10 23-1 1 1
1GM10, 1GM10C 1GM10_VE_B_C_L Fig 2. GEAR HOUSING 9 8 ▲ 1 1
2GM20, 2GM20C Yanmar 2GM20 Parts Catalog (ympdf3a) Fig 3. GEAR HOUSING 12-2 ▲ 1 1
2GM20B, 2GM20F Yanmar 2GM20 Parts Catalog (ympdf3a) Fig 4. GEAR HOUSING 12-2 ▲ 1 1
Fig 3 3GM30, 3GM30-YEU, 3GM30C-YEU 3GM30-YEU_3GM30C-YEU_3GM30F-YEU_3GM30FC-YEU Fig 3. GEAR HOUSING 10 13 1 1
3GM30, 3GM30C, 3GM30VE 3GM30_VE_B_C_F_FVE Fig 3. GEAR HOUSING 11 13-1 ▲ 1 1
3GM30, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU_3GM30C-YEU_3GM30F-YEU_3GM30FC-YEU Fig 4. GEAR HOUSING 11 13 1 1
3GM30B, 3GM30F, 3GM30FVE 3GM30_VE_B_C_F_FVE Fig 4. GEAR HOUSING 12 13-1 ▲ 1 1
3HM35C, 3HM35F 3HM35_C_F Fig 3. GEARS HOUSING 4 8 1 1
