124450-39240 Marine

RETAINER, PIPE

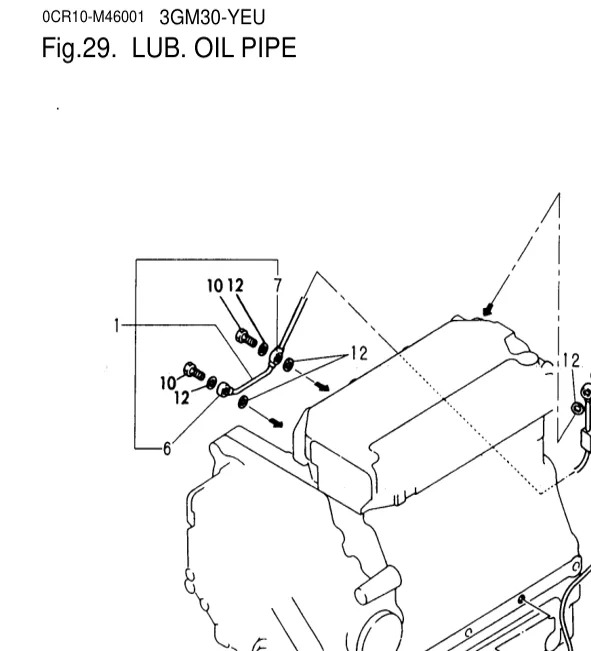

124450-39240 — RETAINER, PIPE exploded diagram
No. 14
Fig 29

124450-39240 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
1GM 7.5hp1GM10 9hp1GM10C 9hp3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30F 27hp3GM30F-YEU 27hp3GM30FC-YEU 27hp3GM30FVE 27hp3GM30VE 27hp3HM35C 34hp3HM35F 34hp3JH3CE 40hp3JH3E 40hp3JH3E(EPA) 40hp3QM 30hp4JH3CE 56hp4JH3CE1 56hp4JH3E 56hp4LH-DTE 170hp

Supersession

Superseded by
Part No.DescriptionCodeApplies
194440-51620 CLAMP, B
23297-060081 CLAMP, A6X 8 N C=*1992.02
No cross-references recorded for this part yet.

Used in 16 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 25. LUB. OIL PIPE 35 12 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 38. FUEL PIPE 50 30 1 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 77. FUEL PIPE 92 21 1 1
1GM10, 1GM10C 1GM10 Parts Catalog Fig 42. FUEL LINE 49 1 1 1
1GM10 1GM10 Parts Catalog Fig 43. FUEL LINE 50 1 1 1
Fig 29 3GM30, 3GM30-YEU, 3GM30C-YEU, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 29. LUB. OIL PIPE 38 14 1 1
3GM30, 3GM30B, 3GM30C, 3GM30F, 3GM30FVE, 3GM30VE 3GM30 Parts Catalog Fig 31. LUB. OIL LINE 40 14 1 1
3GM30, 3GM30-YEU, 3GM30C-YEU, 3GM30F-YEU, 3GM30FC-YEU 3GM30-YEU Parts Catalog Fig 45. FUEL PIPE 54 1 1 1
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 49. FUEL LINE 58 1 1 1
3GM30F, 3GM30FVE 3GM30 Parts Catalog Fig 50. FUEL LINE(3GM30F/FVE) 59 1 1 1
3HM35C, 3HM35F 3HM35 Parts Catalog Fig 32. LUB.OIL LINES 33 9 1 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog Fig 15. LUB.OIL PIPE 16 2 1 1
3JH3CE, 3JH3E, 3JH3E(EPA) 3JH3E Parts Catalog (2) Fig 15. LUB.OIL PIPE 20 2 1 1
3QM 3QM30 Parts Catalog Fig 8. LUB.OIL SYSTEM 16 34 1 1
4JH3CE, 4JH3CE1, 4JH3E 4JH3E Parts Catalog Fig 21. LUB.OIL COOLER(4JH3E) 22 15 1 1
4LH-DTE 4LH Parts Catalog Fig 33. LUB. OIL SYSTEM(4LH-DTE,STE) 46 16 1 2
