MarineDieselXRef Yanmar
Yanmar › Part 129100-61440

129100-61440 Marine + Industrial

LEVER, CONTROL

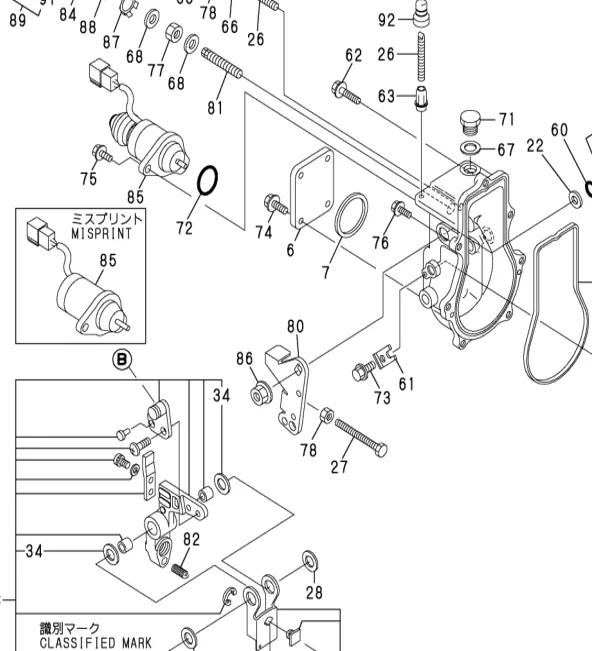

129100-61440 — LEVER, CONTROL exploded diagram
Ref 13
Fig 15
3TN84L-RTBZ
129100-61440 — LEVER, CONTROL exploded diagram
Ref 80
Fig 26
3JH4E
129100-61440 — LEVER, CONTROL exploded diagram
Ref 33
Fig 28
3TN75E-G1_3TN75E-G2_3TN82E-G1_3TN82E-G2_4TN82E-G1_4TN82E-G2
129100-61440 — LEVER, CONTROL exploded diagram
Ref 84
Fig 14
3TNE84-SA_3TNE84-G1A_3TNE84-G2A_3TNE84C-G1A
129100-61440 — LEVER, CONTROL exploded diagram
Ref 76
Fig 13
4TNE88-PG

129100-61440 — Affiliate Parts Search

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines

Supersession

Superseded by
Part No.DescriptionCodeApplies
171488-61440 LEVER, CONTROL A=E37036
No cross-references recorded for this part yet.

Used in 6 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
Fig 28 3TN75E-G1, 3TN75E-G2, 3TN82E-G1, 3TN82E-G2, 4TN82E-G1, 4TN82E-G2 3TN75E-G1_3TN75E-G2_3TN82E-G1_3TN82E-G2_4TN82E-G1_4TN82E-G2 Fig 28. GOVERNOR 45 33 2 1
Fig 15 3TN84L-RTBZ 3TN84L-RTBZ Fig 15. GOVERNOR 20 13 2 1
Fig 14 3TNE84-G1A, 3TNE84-G2A, 3TNE84-SA, 3TNE84C-G1A 3TNE84-SA_3TNE84-G1A_3TNE84-G2A_3TNE84C-G1A Fig 14. GOVERNOR 23 84 1 1
3TNE84T-EMP 3TNE84T-EMP Fig 14. GOVERNOR (A)=3TNE84T-EMP 19 76 2 1
Fig 13 4TNE88-PG 4TNE88-PG Fig 13. GOVERNOR (A)=4TNE88-PG 18 76 2 1
Fig 26 3JH4E 3JH4E Fig 26. GOVERNOR 31 80 2 1
