24101-062054 Marine
BEARING #6205
24101-062054 — Affiliate Parts Search
As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More
Fitted to
Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.
EnginesOEM interchange
Other OEM part numbers for the same part — order from any of these makers or their dealers.
Aftermarket equivalents cross-ref
Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.
| Equivalent P/N | Brand | Description | Source | Confidence | Shop |
|---|---|---|---|---|---|
| 6205 | INA/SKF/Koyo (standard) | BEARING #6205 - ISO bearing number (universal SKF/FAG/NSK/NTN/Koyo/Timken) | yanmarshop.com | confirmed |
Standard component cross-ref
An industry-standard component — buy from any bearing / seal / o-ring house; just specify the designation.
| Equivalent P/N | Brand | Description | Source | Confidence | Shop |
|---|---|---|---|---|---|
| 6205 | Bearing | Bearing 6205 (also sold as SKF 6205) | YSM YA YC Parts Catalog.pdf p103 description; kubotageneratorsdirect.com; palmerpower.com | confirmed |
Same size in other engines: Kubota Marine 08153-06205, Westerbeke 030198.
Used in 10 places
Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.
| Model(s) | Catalog | Figure | Page | Ref | Lev | Qty | |
|---|---|---|---|---|---|---|---|

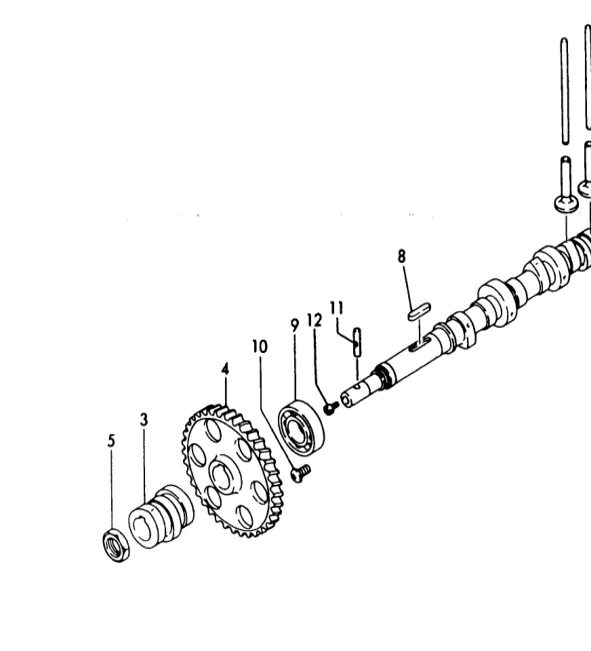

| 1GM | 1GM_2GMF_3GMF_3GMD_3HM_3HMF | Fig 17. CAMSHAFT | 27 | 23 | 1 | 1 | |
| 2GM20, 2GM20C, 2GM20VE | Yanmar 2GM20 Parts Catalog (ympdf3a) | Fig 23. CAMSHAFT | 8 | 1 | 1 | ||
| 2GM20B, 2GM20F, 2GM20FVE | Yanmar 2GM20 Parts Catalog (ympdf3a) | Fig 24. CAMSHAFT | 8 | 1 | 1 | ||
| 3GM30, 3GM30-YEU, 3GM30C-YEU | 3GM30-YEU_3GM30C-YEU_3GM30F-YEU_3GM30FC-YEU | Fig 20. CAMSHAFT | 29 | 9 | 1 | 1 | |
| 3GM30, 3GM30F-YEU, 3GM30FC-YEU | 3GM30-YEU_3GM30C-YEU_3GM30F-YEU_3GM30FC-YEU | Fig 21. CAMSHAFT | 30 | 9 | 1 | 1 | |
| 3GM30, 3GM30C, 3GM30VE | 3GM30_VE_B_C_F_FVE | Fig 22. CAMSHAFT | 31 | 9 | 1 | 1 | |
| 3GM30B, 3GM30F, 3GM30FVE | 3GM30_VE_B_C_F_FVE | Fig 23. CAMSHAFT | 32 | 9 | 1 | 1 | |
| 3HM35C, 3HM35F | 3HM35_C_F | Fig 7. CAMSHAFT BEARING | 8 | 1 | 1 | 1 | |
| 3QM | 2QM20_3QM30_2QM_3QM | Fig 23. FRICTION DISC & AHEAD SHAFT | 41 | 63 | 2 | ||
| YSM12, YSM8 | YSM YA YC Parts Catalog | Fig 20. CLUTCH (FRICTION DISC & AHEAD SHAFT) | 103 | 20-23 | 1 | 2 |
