Yanmar › Part 25132-003800

25132-003800 Marine + Industrial

V-BELT, A38

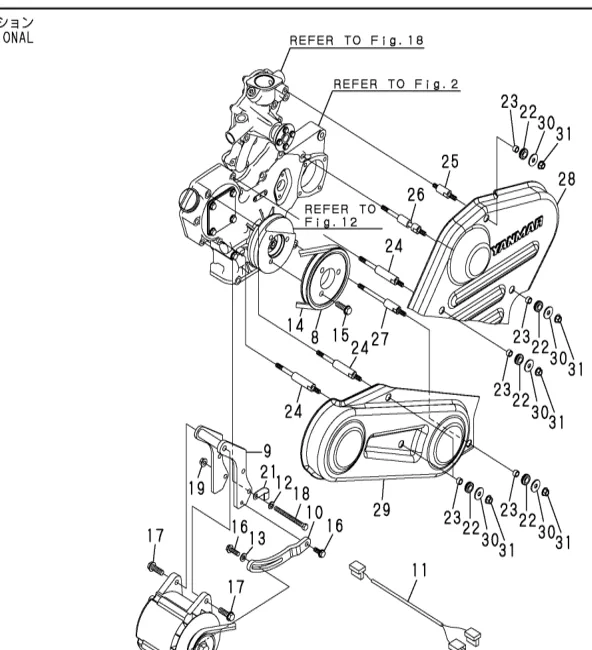

25132-003800 — V-BELT, A38 exploded diagram
Ref 14
Fig 38
3JH4E
25132-003800 — V-BELT, A38 exploded diagram
Ref 16
Fig 11
3TNE84-SA_3TNE84-G1A_3TNE84-G2A_3TNE84C-G1A

25132-003800 — Affiliate Parts Search

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines

Supersession

Replaces (older)
Part No.DescriptionCodeApplies
25132-003700 V-BELT, A37 N B=E13430; D=E00257

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
A38 Gates Standard A-section V-belt 40in OD (Dayco/Bando same; 4L400) dieselpartsdirect.com; vbelts4less.com confirmed

Standard component cross-ref

An industry-standard component — buy from any bearing / seal / o-ring house; just specify the designation.

Equivalent P/NBrandDescriptionSourceConfidenceShop
A38 Belt V-belt A38 3JH4E.pdf p44 description; 3TN84L-RTBZ.pdf p14 description; 3TNV82A_BPYBD_BPYBC_BPYBU.pdf p14 description confirmed

Used in 11 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
Fig 11 3TNE84-G2A, 3TNE84-SA 3TNE84-SA_3TNE84-G1A_3TNE84-G2A_3TNE84C-G1A Fig 11. COOLING WATER SYSTEM 17 16 1 1
Fig 11 3TNE84-G1A, 3TNE84C-G1A 3TNE84-SA_3TNE84-G1A_3TNE84-G2A_3TNE84C-G1A Fig 11. COOLING WATER SYSTEM 17 17-1 ▲ 1 1
3TNE84T-EMP 3TNE84T-EMP Fig 12. COOLING WATER SYSTEM (A)=3TNE84T-EMP 16 25 1 1
4TNE84-EG1A, 4TNE84-ESA, 4TNE84-G1A01, 4TNE84-G2A01, 4TNE84-SA 4TNE84_SA_G1A01_G2A01_ESA_EG1A Fig 11. COOLING WATER SYSTEM (A)=4TNE84-SA 15 25 1 1
4TNE88-PG 4TNE88-PG Fig 10. COOLING WATER SYSTEM (A)=4TNE88-PG 14 15 1 1
Fig 38 3JH4E 3JH4E Fig 38. V-BELT COVER & GENERATOR ATTACHMENT 44 14 1 1
3JH5E 3JH5E Fig 37. V-BELT COVER & GENERATOR ATTACHMENT PARTS(OPTIONAL) 42 17 1 1
4JH4-HTE, 4JH4-TE 4JH4_TE_HTE Fig 40. V-BELT COVER & GENERATOR ATTACHMENT 45 13 1 1
4JH4AE 4JH4AE Fig 38. V-BELT COVER & GENERATOR ATTACHIMENT(OPTIONAL) 43 17 1 1
4JH4E 4JH4E Fig 40. V-BELT COVER & GENERATOR ATTACHMENT 46 17 1 1
4JH5E 4JH5E Fig 37. V-BELT COVER & GENERATOR ATTACHMENT PARTS(OPTIONAL) 42 17 1 1
