Home › Part 27210-200300

27210-200300 Marine

ZINC, ANTI-CORROSIVE

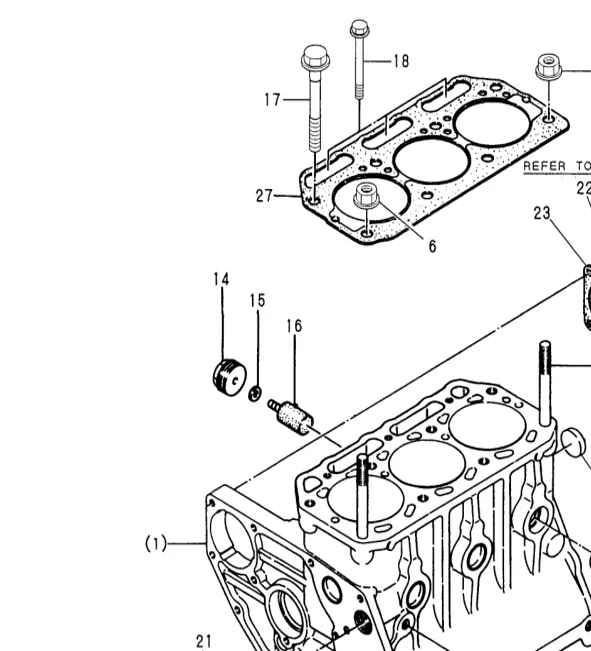

27210-200300 — ZINC, ANTI-CORROSIVE exploded diagram
No. 16
Fig 1

27210-200300 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
3GM30 27hp3GM30-YEU 27hp3GM30B 27hp3GM30C 27hp3GM30C-YEU 27hp3GM30VE 27hp3HM35C 34hp3QM 30hp

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
18-6201 Sierra Zinc pencil anode boatzincs.com likely
AMZeBayAli
CM27210200300Z Martyr Zinc engine pencil anode (Al=...A Mg=...M) go2marine.com confirmed
AMZeBayAli
01301 Tecnoseal Zinc pencil anode 20x30 M8 2GM/3GM/2QM/3HM/3YM - alias 01313 anodeoutlet.co.uk confirmed
AMZeBayAli

Used in 18 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 1. CYLINDER BLOCK(1,2GM(F)) 7 24 2 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 2. CYLINDER BLOCK 9 21 2 2
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 11. CYLINDER HEAD 19 46 2 1
1GM 1GM 2GM 3GM 3HM Parts Catalog Fig 64. REPAIR KIT(OPTIONAL) 77 6 2 2 / 3
Fig 1 3GM30, 3GM30-YEU, 3GM30C-YEU 3GM30-YEU Parts Catalog Fig 1. CYLINDER BLOCK 8 16 2 2
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 1. CYLINDER BLOCK 9 17 2 2
3GM30, 3GM30-YEU, 3GM30C-YEU 3GM30-YEU Parts Catalog Fig 14. CYLINDER HEAD 21 25 2 1
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 15. ANTI-CORROSIVE ZINC 23 3 2 2
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 15. ANTI-CORROSIVE ZINC 23 6 2 1
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 16. CYLINDER HEAD 24 25 2 1
3GM30, 3GM30-YEU, 3GM30C-YEU 3GM30-YEU Parts Catalog Fig 82. REPAIR PART(OPTIONAL) 92 22 2 3
3GM30, 3GM30B, 3GM30C, 3GM30VE 3GM30 Parts Catalog Fig 89. REPAIR PART(OPTIONAL) 98 21 2 3
3HM35C 3HM35 Parts Catalog Fig 16. ANTI-CORROSIVE ZINC 17 5 2 3
3HM35C 3HM35 Parts Catalog Fig 85. REPAIR SET 86 20 2 3
3QM 3QM30 Parts Catalog Fig 3. CYLINDER HEAD 7 28 1
3QM 3QM30 Parts Catalog Fig 11. C.F.W.PUMP & C.F.W.COOLER 21 48 3 1
3QM 3QM30 Parts Catalog Fig 12. COOLING WATER SYSTEM 23 13 2
3QM 3QM30 Parts Catalog Fig 28. SPAIR PART KIT 49 16 2
