Home › Part 3840525

3840525 Marine

Oil filter

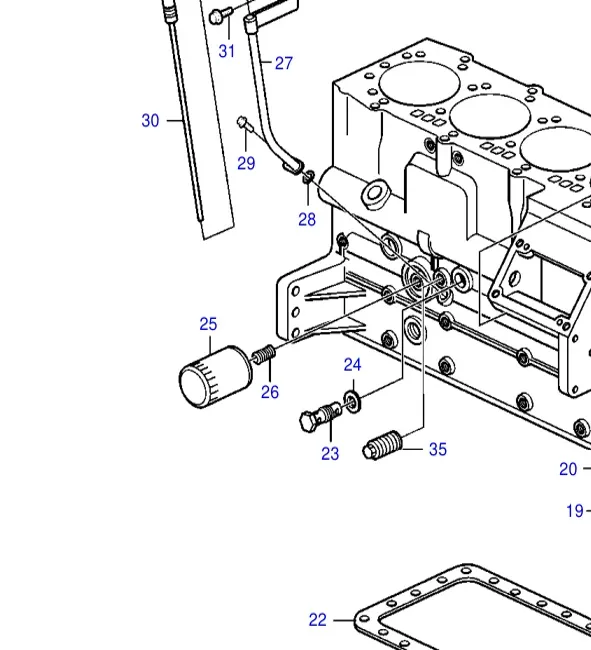

3840525 — Oil filter exploded diagram
Ref 25
Fig 22-35154

3840525 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta D2-50 50hpVolvo Penta D2-55 55hpVolvo Penta D2-60 60hpVolvo Penta D2-75 75hpVolvo Penta MD2030 15hpVolvo Penta MD2040 21hp

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

861473

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
W719/27 Mann Mann cross-reference for VP 3840525 confirmed via repowermarine.com and oilfilter cross-ref sources. repowermarine.com likely
AMZeBayAli
REC861473 Recmar RecMar direct-replacement oil filter for D1-13/D1-20/MD2010/MD2020 (VP 861473). marineparts.eu likely
AMZeBayAli
H14W32 Hengst Oil filter for D1-13 / D1-20 / MD2010 / MD2020. SVB24 product listing explicitly names these engines. svb24.com confirmed
AMZeBayAli

Used in 21 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
VP-D1-30 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8310. Lubricating System 18 1
VP-D2-40 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8311. Lubricating System 19 1
Fig 22-8310 VP-D1-30 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 22-8310. Lubricating System (D1-30A, D1-30B, D1-30F) 84 18 1
Fig 22-8311 VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 22-8311. Lubricating System (D2-40A, D2-40B, D2-40F) 86 19 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 22-35154. Lubricating System (D2-55F) 28 25 1
VP-D2-55 D2-55 Parts Catalog (EN) Fig 22-5488. Lubricating System (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E) 26 25 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 90-5519. Universal Bracket for S-drive (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 257 ▲ 1
VP-D2-50, VP-D2-55 D2-55 Parts Catalog (EN) Fig 90-5519. Universal Bracket for S-drive (D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F) 257 ▲ 1
VP-D2-55 D2-55 Parts Catalog Fig 22-35154. Lubricating System 30 27 1
VP-D2-55 D2-55 Parts Catalog Fig 22-5488. Lubricating System 28 25 1
VP-D2-55 D2-55 Parts Catalog Fig 99-5516. Repair Kits 274 ▲ 1
VP-D2-55 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744440.html Fig 5488. Lubricating System 25 1
VP-D2-50, VP-D2-55 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744440.html Fig 35154. Lubricating System 27 1
VP-D2-75 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744450.html Fig 6770. Lubricating System 25 1
VP-D2-60, VP-D2-75 https://powerproductsystems.com/engines-live/marine-diesel-engines/7744450.html Fig 35188. Lubricating System 25 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 162. Lubricating System 32 1
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 164. Lubricating System 32 1
VP-MD2030 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2416. Lubricating System 32 1
VP-MD2040 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2417. Lubricating System 32 1
