MarineDieselXRef
Home › Part 861473

861473 Marine

Oil filter

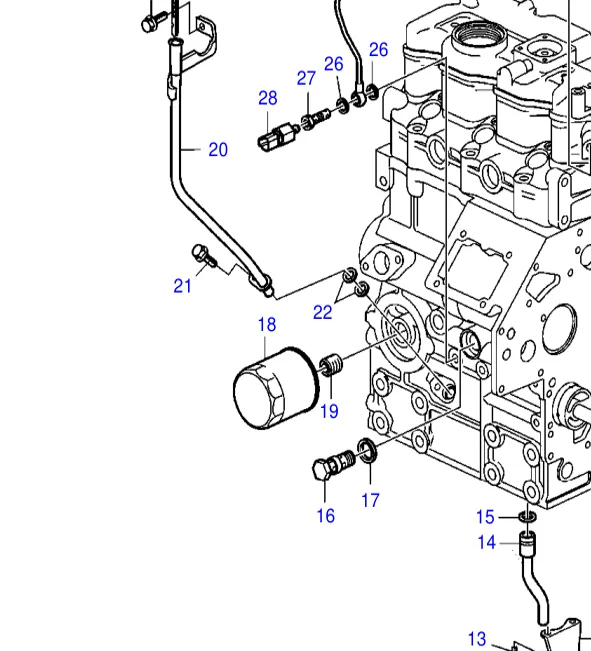

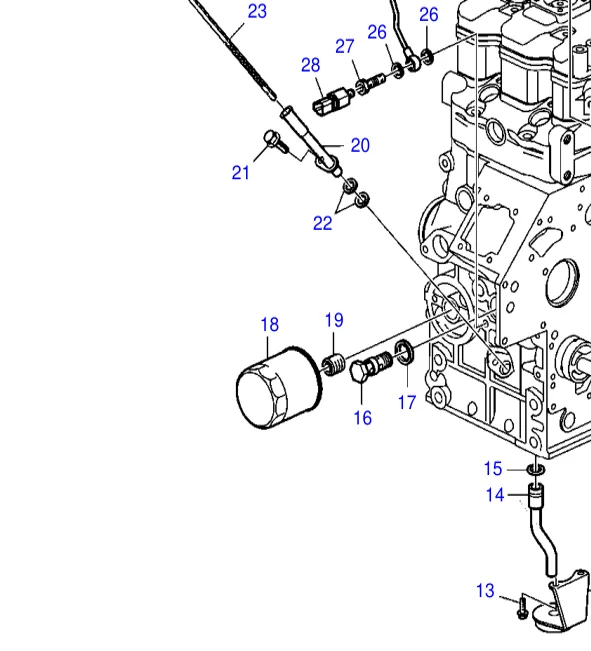

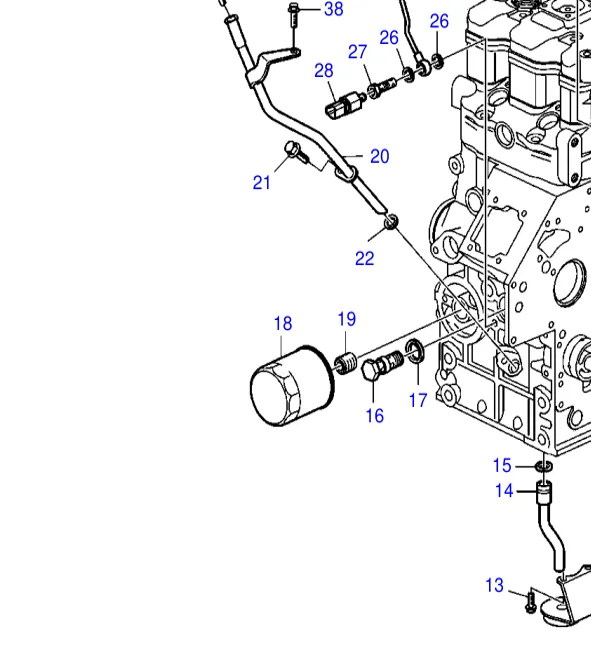

861473 — Oil filter exploded diagram
Ref 18
Fig 22-8308

861473 — Affiliate Parts Search

AmazoneBayAliExpress

As an Amazon Associate I earn from qualifying purchases. Other links (eBay, AliExpress) are also affiliate links. They help pay for the site, at no extra cost to you. More

Fitted to

Engines, drives and generators whose parts catalogue lists this part. Open any for its exploded parts list.

Engines
Volvo Penta D1-13 13hpVolvo Penta D1-20 20hpVolvo Penta D1-30 30hpVolvo Penta D2-40 40hpVolvo Penta MD2010 10hpVolvo Penta MD2020 10hp

OEM interchange

Other OEM part numbers for the same part — order from any of these makers or their dealers.

3840525

Aftermarket equivalents cross-ref

Third-party equivalents (Jabsco, Sierra, WIX, Mann…) — not OEM; verify before ordering. Usually cheaper than the marine dealer.

Equivalent P/NBrandDescriptionSourceConfidenceShop
W719/27 Mann Mann cross-reference for VP 3840525 confirmed via repowermarine.com and oilfilter cross-ref sources. repowermarine.com likely
AMZeBayAli
REC861473 Recmar RecMar direct-replacement oil filter for D1-13/D1-20/MD2010/MD2020 (VP 861473). marineparts.eu likely
AMZeBayAli
H14W32 Hengst Oil filter for D1-13 / D1-20 / MD2010 / MD2020. SVB24 product listing explicitly names these engines. svb24.com confirmed
AMZeBayAli

Used in 12 places

Every catalog figure this part is placed in, the model(s) it applies to, and its reference/level/quantity.

Model(s)CatalogFigurePageRefLevQty
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8308. Lubricating System 18 1
VP-D1-20 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 8309. Lubricating System 18 1
VP-D1-13 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746500.html Fig 35029. Lubricating System 18 1
Fig 22-35029 VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 22-35029. Lubricating System (D1-13F) 80 18 1
Fig 22-8308 VP-D1-13 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 22-8308. Lubricating System (D1-13A, D1-13B) 78 18 1
Fig 22-8309 VP-D1-20 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 22-8309. Lubricating System (D1-20A, D1-20B, D1-20F) 82 18 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-D1-13, VP-D1-20, VP-D1-30, VP-D2-40 D1-13 D1-20 D1-30 D2-40 Parts Catalog Fig 90-8378. Universal Bracket for Reverse Gear and S-drive (D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D1-13F, D1-20F, D1-30F, D2-40F) 333 ▲ 1
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 160. Lubricating System 32 1
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746800.html Fig 161. Lubricating System 32 1
VP-MD2010 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2414. Lubricating System 32 1
VP-MD2020 https://powerproductsystems.com/engines-live/marine-diesel-engines/7746410.html Fig 2415. Lubricating System 32 1
